HTCDatasheet (PDF)

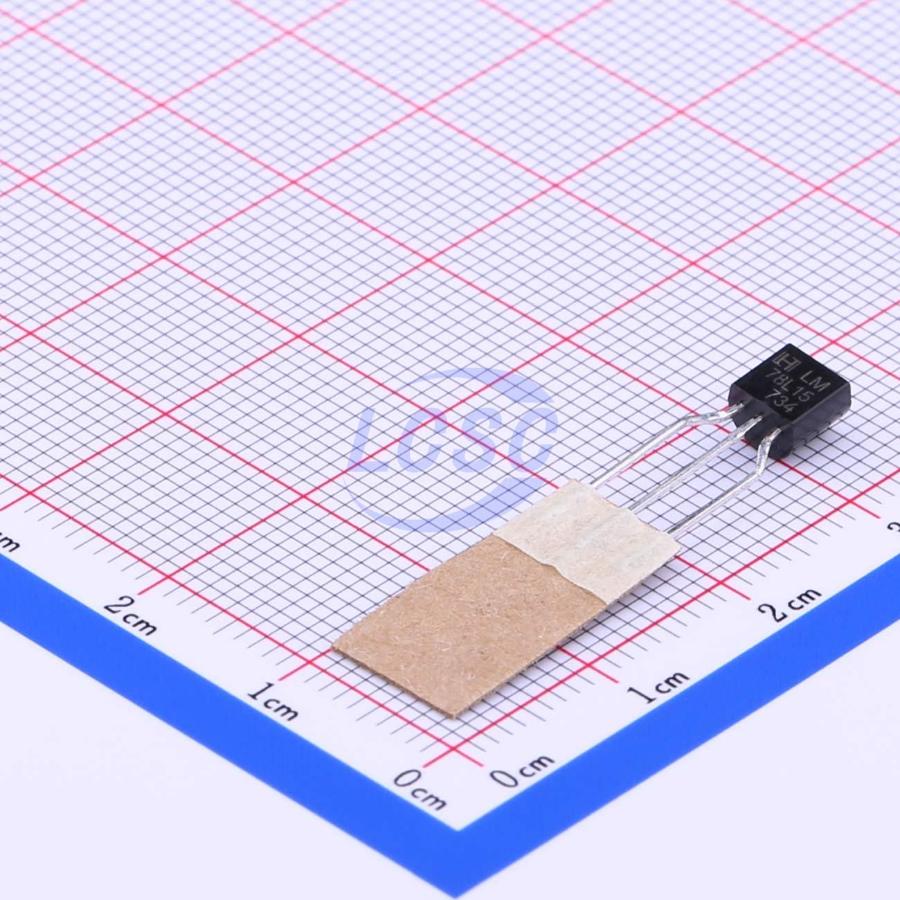

LM78L15TA
15V Positive Fixed TO-92-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-3ROHS CompliantActive
3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATOR
- Manufacturer
- HTC
- Manufacturer part #
- LM78L15TA
- Store part #
- C262798
- Package / case
- TO-92-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C262798
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.12 | ₹60.60 |
| 50+ | ₹9.76 | ₹488.00 |
| 150+ | ₹8.59 | ₹1,288.50 |
| 500+ | ₹7.70 | ₹3,850.00 |
| 2,000+ | ₹6.65 | ₹13,300.00 |
| 4,000+ | ₹6.31 | ₹25,240.00 |
5 × ₹12.12
₹60.60
excl. GST
₹71.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per box
LM78L15TA
₹60.60 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.2mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.325 g
Overview
This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high current voltage regulators. Each of these regulators can deliver up to 100 mA of output current. The internal limiting and thermal shutdown features of these regulators make them essentially immune to overload. Current limiting is include to limit the peak output current (250 mA ∼ 300 mA) to a safe value. When used as a replacement for a zener diode-resistor combination, an effective improvement in output impedance can be obtained together with lower-bias current.
Key features
- Output Current Up to 100 mA
- No External Components
- Internal Thermal Overload Protection
- Internal Short-Circuit Limiting
- Output Voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V and 24V
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM78L15#C126070HTC · TO-92-3 | HTC | TO-92-3 | 885 | ₹14.65 · 885 in stock | View |
| CJ78L15-TA#C2910398JSCJ · TO-92-3 | JSCJ | TO-92-3 | 40 | ₹9.63 · 40 in stock | View | |
 | MC78L15ABPG#C415862onsemi · TO-92-3 | onsemi | TO-92-3 | 4,175 | ₹42.43 · 4,175 in stock | View |
 | CJ78L15C-TAB-ABG#C20622074JSCJ · TO-92 | JSCJ | TO-92 | 290 | ₹10.19 · 290 in stock | View |
| MC78L15ACPG#C146797onsemi · TO-92-3 | onsemi | TO-92-3 | 510 | ₹33.75 · 510 in stock | View | |
