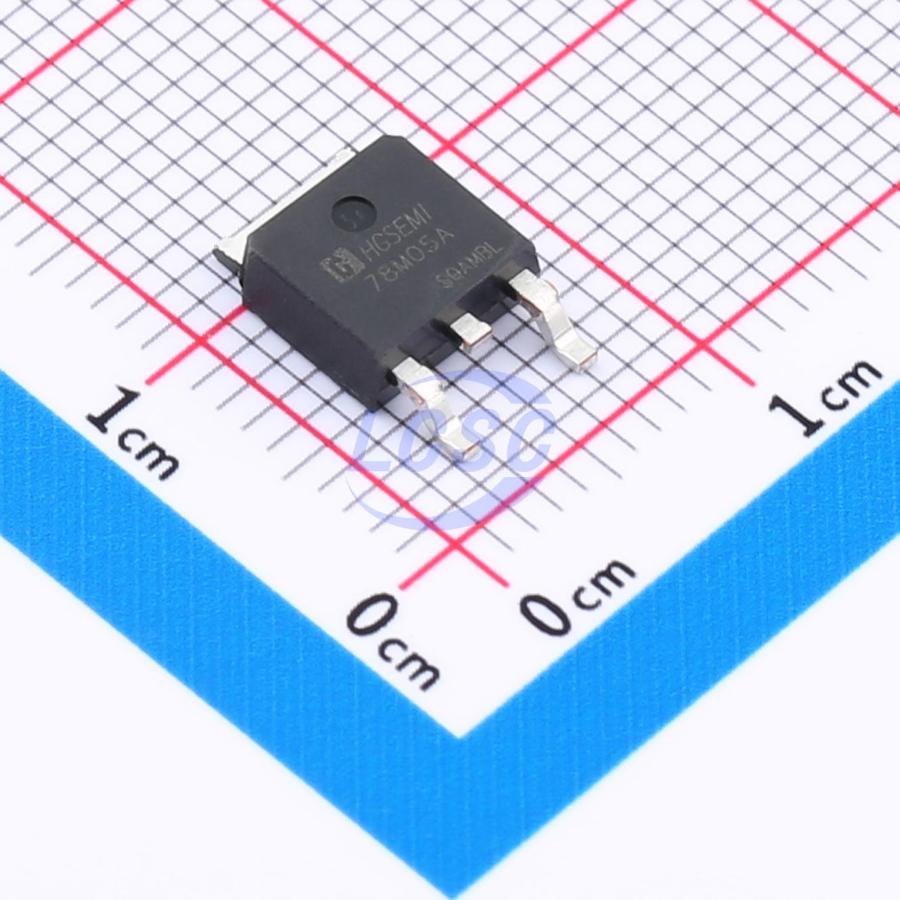

LM78M05ADT/TR
5V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252RoHSActive
3-Terminal 1 A Positive Voltage Regulator
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM78M05ADT/TR
- Store part #
- C7432054
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,065 in stock
#C7432054
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.74 | ₹88.70 |
| 50+ | ₹13.88 | ₹694.00 |
| 150+ | ₹11.95 | ₹1,792.50 |
| 500+ | ₹10.50 | ₹5,250.00 |
| 2,500+ | ₹9.35 | ₹23,375.00 |
| 5,000+ | ₹8.77 | ₹43,850.00 |
5 × ₹17.74
₹88.70
excl. GST
₹104.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM78M05ADT/TR
₹88.70 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.493 g
Overview
The LM78MxxA series of three-terminal positive regulators are available in the TO252-2 package with several fixed output voltages making it useful in a wide range of applications.
Key features
- Output Current up to 1A
- Output Voltages of 5, 6, 8, 12, 15, 18, 24V
- Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating Area (SOA) Protection
