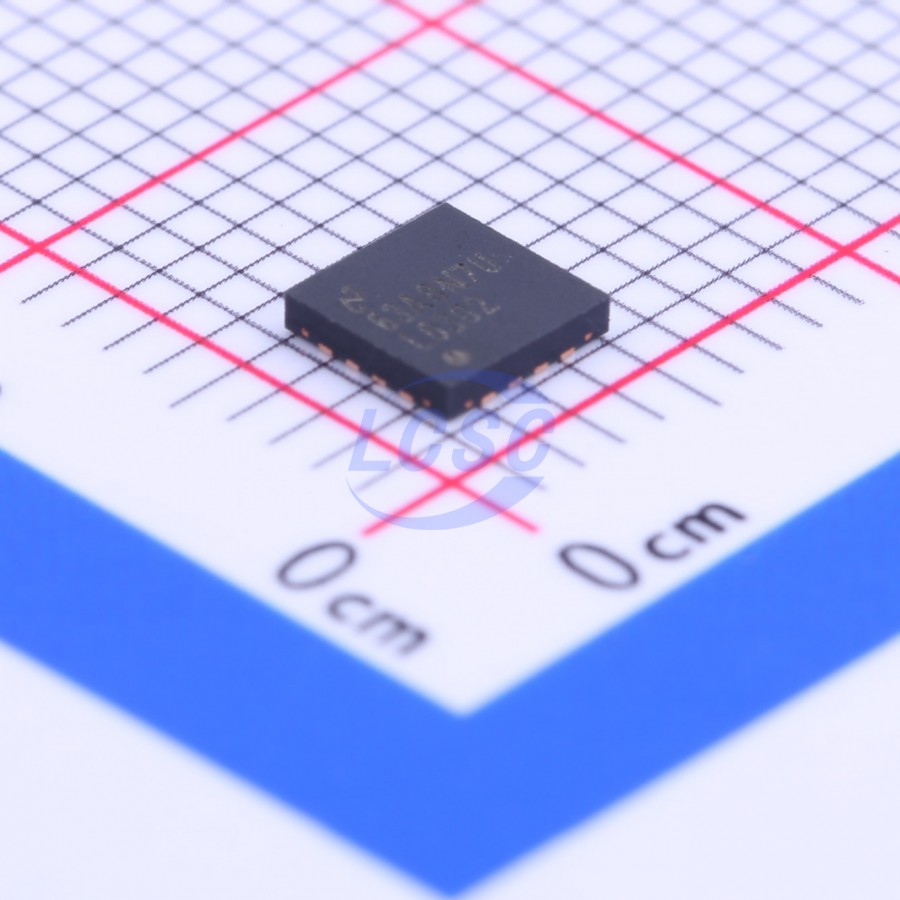

LMH0302SQ/NOPB
2.97Gbps 3.3V Driver QFN-16-EP(4x4) Video Processing RoHS
3-Gbps HD/SD SDI Cable Driver
- Manufacturer
- TI
- Manufacturer part #
- LMH0302SQ/NOPB
- Store part #
- C181305
- Package / case
- QFN-16-EP(4x4)
- Category
- Video Processing
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,938 in stock
#C181305
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹598.32 | ₹598.32 |
| 10+ | ₹513.77 | ₹5,137.70 |
| 30+ | ₹463.47 | ₹13,904.10 |
| 100+ | ₹412.64 | ₹41,264.00 |
| 500+ | ₹389.20 | ₹1,94,600.00 |
| 1,000+ | ₹378.56 | ₹3,78,560.00 |
1 × ₹598.32
₹598.32
excl. GST
₹706.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LMH0302SQ/NOPB
₹598.32 for 1 + GST
Specifications
- Data Rate
- 2.97Gbps
- Voltage - Supply
- 3.3V
- Operating Temperature
- -40℃~+85℃
- Type
- Driver
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- 5A991B1
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
The LMH0302 3-Gbps HD/SD SDI cable driver is designed for use in ST 424, ST 292, ST 344, and ST 259 serial digital video applications. The LMH0302 drives 75-Ω transmission lines (Belden 1694A, Belden 8281, or equivalent) at data rates up to 2.97 Gbps. The LMH0302 provides two selectable slew rates for ST 259 and ST 424 or 292 compliance. The output driver may be powered down through the output driver enable pin. The LMH0302 is powered from a single 3.3-V supply. Power consumption is typically 125 mW in SD mode and 165 mW in HD mode. The LMH0302 is available in a 16-pin WQFN package.
Applications
- ST 424, ST 292, ST 344, and ST 259 Serial Digital Interfaces
- Digital Video Routers and Switches
- Distribution Amplifiers
Key features
- Supports ST 424 (3G), 292 (HD), and 259 (SD) Data Rates up to 2.97 Gbps Supports DVB-ASI at 270 Mbps
- 100-Ω Differential Input 75-Ω Single-Ended Outputs
- Selectable Slew Rate Output Driver Power-Down Control
- Single 3.3-V Supply Operation
- Industrial Temperature Range: -40°C to 85°C
- Typical Power Consumption: 125 mW in SD Mode and 165 mW in HD Mode
- 16-Pin WQFN Package
- Footprint Compatible With the LMH0002SQ
- Replaces the Gennum GS2978
