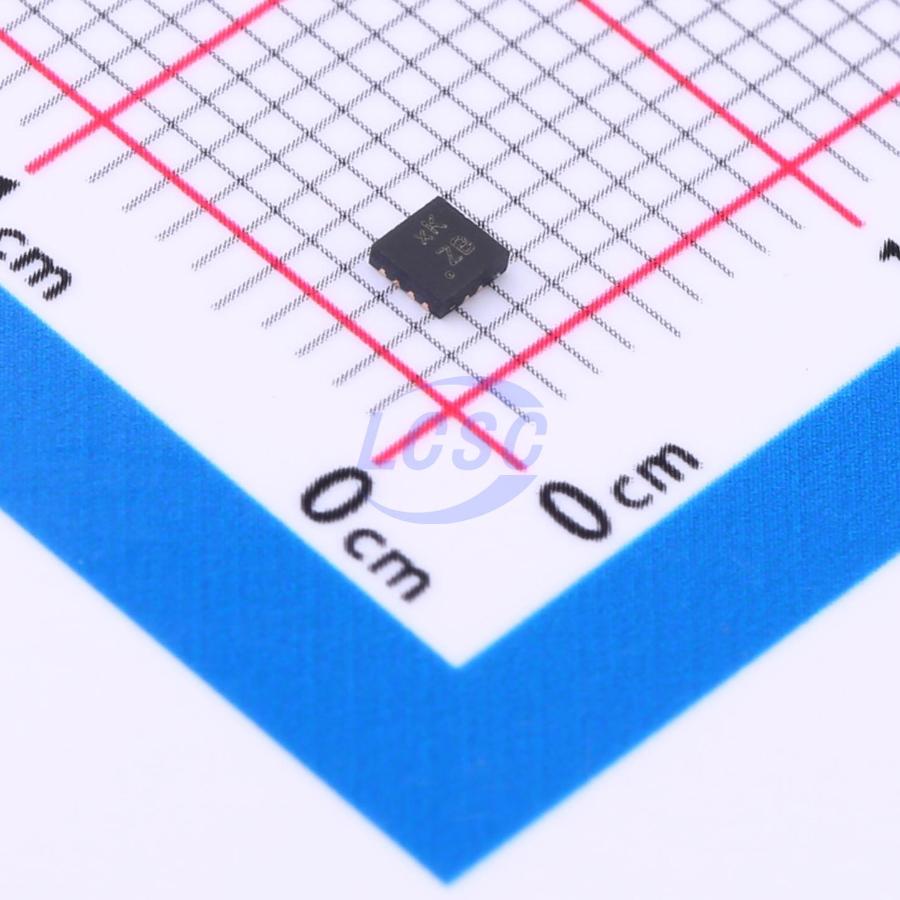

PI3AUX221ZTAEX

PI3AUX221 is an interface chip between the discrete Graphics Processing Unit (GPU) and the Display Port (DP) connector. The device is ideal for applications that require support of Dual-Mode Display Port. It integrates the support function for Display Data Channel (DDC) in HDMI mode and includes the functions of level translation, mux function, over-voltage protection, back-drive protection and inversion of Hot Plug Detect (HPD). The level translation function allows a wide range of voltages between 1V to 5V. The device eliminates the requirement of many discrete components, and it is available in a space-saving 12-pin ultra-thin 0.65mm high 2x2 mm QFN package.

Applications

• Dual Mode Display Port in Graphics Cards

Key features

• AC-coupling of AUX signal or DC-level translated Display Data Channel (DDC) signal controlled by the SEL pin
• Bi-directional level translation of 100KHz DDC signals
• Inverted level translation of HPD signal from DisplayPort Connector to GPU
• Protection function to prevent signal propagation across AUX1 and AUX2A/B when either VREF1 or VREF2 voltage is invalid
• Protection function to prevent signal propagation from HPD2 to HPD1 when VREF1 is invalid
• Protection on AUX1 from over-voltage condition of AUX2A and AUX2B
• Leakage current between VREF1 and VREF2 limited to 100nA
• 10MHz, -3dB Bandwidth for AUX switches
• Complies with DisplayPort 2.0
• Complies with HDMI 2.1
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• Packaging (Pb-free & Green): 12-Pin, 2x2mm UQFN (ZTA)
