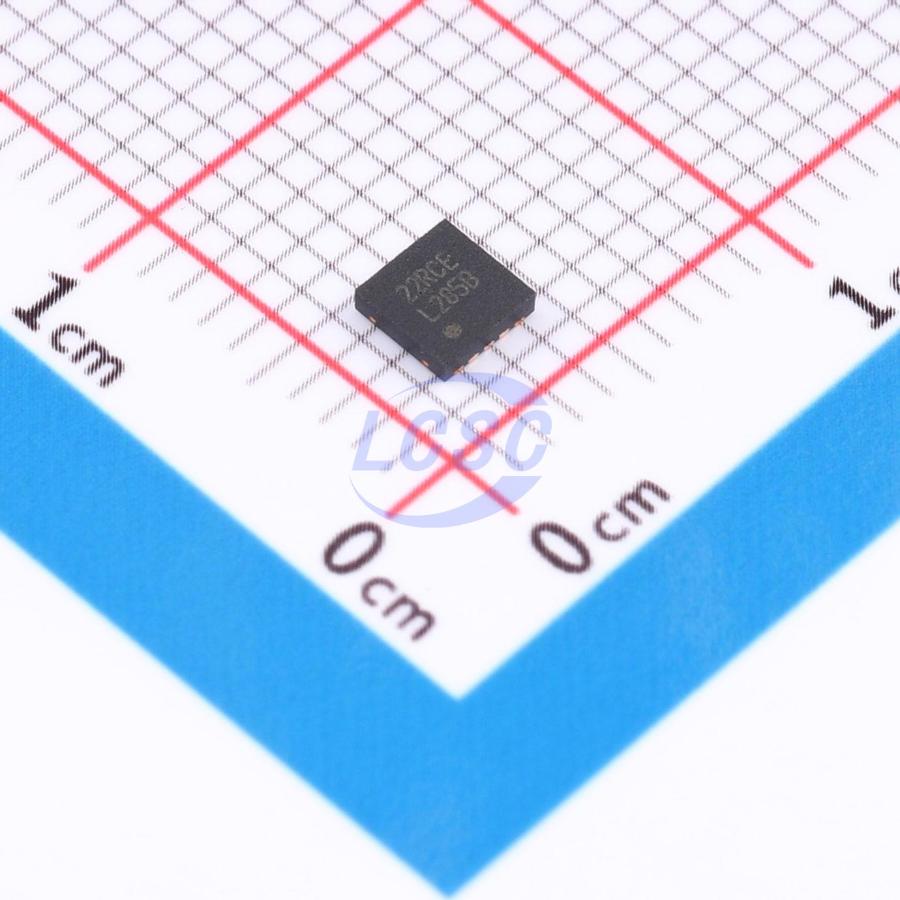

LMR12015XSD/NOPB

The LMR120xx regulator is a monolithic, high-frequency, PWM step-down DC/DC converter in a 10-pin WSON package. The device integrates all active functions to deliver local DC/DC conversion with fast transient response and precise regulation in the smallest possible PCB footprint. The LMR12015/20 is easy to use with minimal external components. The device drives 1.5A or 2A loads through an internal 150mΩ NMOS switch for optimal power density. The control circuit achieves on-times as low as 65ns, enabling extremely high-frequency conversion. The switching frequency is internally set to 2MHz and can be synchronized from 1 to 2.35MHz, allowing the use of very small surface-mount inductors and chip capacitors. Despite the high operating frequency, efficiency up to 90% is easily achievable. An external shutdown function is included with an ultralow shutdown current of 70nA. The LMR12015/20 employs peak current mode control and internal compensation to deliver high-performance regulation across a wide range of operating conditions. Additional features include an internal soft-start circuit to reduce inrush current, cycle-by-cycle current limiting, thermal shutdown, and output overvoltage protection.

Applications

• 3.3V, 5V, and 12V power rail to point-of-load conversion
• Space-constrained applications

Key features

• Input voltage range: 3V to 20V
• Output voltage range: 1V to 18V
• LMR12015 and LMR12020 provide maximum output current of 1.5A and 2A, respectively
• 2MHz switching frequency
• Frequency synchronization: 1MHz to 2.35MHz
• 70nA shutdown current
• 1% voltage reference accuracy
• Peak current mode PWM operation
• Thermal shutdown
• Internal compensation
• Internal soft-start
• High-accuracy power supply for digital ICs
• Extremely easy to use
• Miniature all-in-one solution reduces system cost
• Space-saving WSON (3×3×0.8mm) package
• Create custom designs using LMR12015 WEBENCH Power Designer or LMR12020 WEBENCH Power Designer
