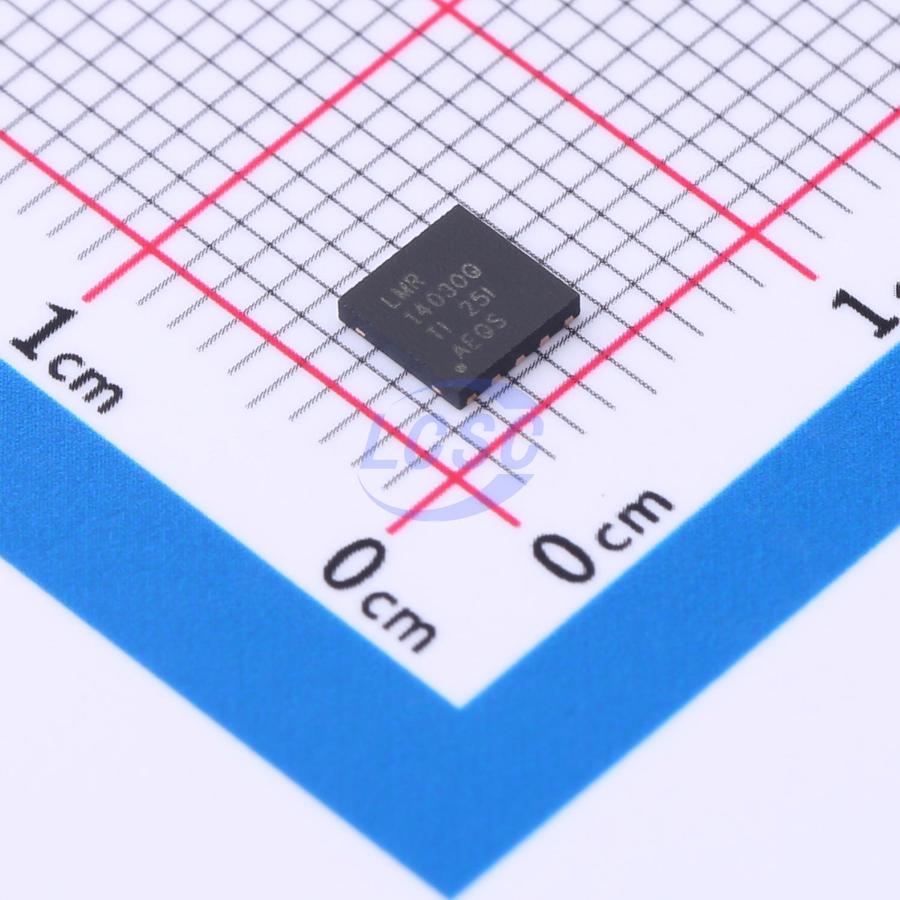

LMR14030QDPRRQ1

The LMR14030-Q1 device is a 40V, 3.5A step-down regulator with an integrated high-side metal-oxide-semiconductor field-effect transistor (MOSFET). The device features a wide input voltage range of 4V to 40V and is suitable for regulating unregulated power supplies in various applications, from industrial to automotive. Its extended product family offers 2A and 5A current options in pin-to-pin compatible packages. The regulator has a quiescent current of 40μA in sleep mode, making it ideal for battery-powered systems. It also has an ultra-low current of 1μA in shutdown mode, which can further extend battery life. The regulator has a wide adjustable switching frequency range, allowing for optimization of efficiency or external component size. Internal loop compensation means that users do not have to undertake the tedious task of designing loop compensation components and can minimize the number of external components of the device. The precision enable input simplifies regulator control and system power sequencing. In addition, the device also incorporates various protection features: cycle-by-cycle current limit protection, thermal sensing and thermal shutdown protection for excessive power dissipation, and output overvoltage protection. The LMR14030-Q1 is available in an 8-pin HSOIC or 10-pin WSON package with an exposed pad for low thermal resistance.

Applications

• Automotive battery regulation
• Industrial power supplies
• Telecom and data communication systems
• General-purpose wide input voltage regulation

Key features

• Automotive electronics applications
• AEC-Q100 qualified with the following results:
• Device temperature grade 1: –40°C to 125°C ambient operating temperature range
• Device HBM ESD classification level H1C
• Device CDM ESD classification level C4A
• Input voltage range: 4V to 40V
• 3.5A continuous output current
• 40μA ultra-low quiescent operating current
• 90mΩ high-side MOSFET
• Minimum on-time: 75ns
• Current mode control
• Adjustable switching frequency range: 200kHz to 2.5MHz
• External clock frequency synchronization
• Spread spectrum option for reduced EMI
• Built-in compensation for ease of use
• High duty cycle operation support
• Precision enable pin
• Shutdown current: 1μA
• External soft-start
• Thermal protection, overvoltage protection, and short-circuit protection
• 8-pin thermally enhanced HSOIC PowerPAD package
