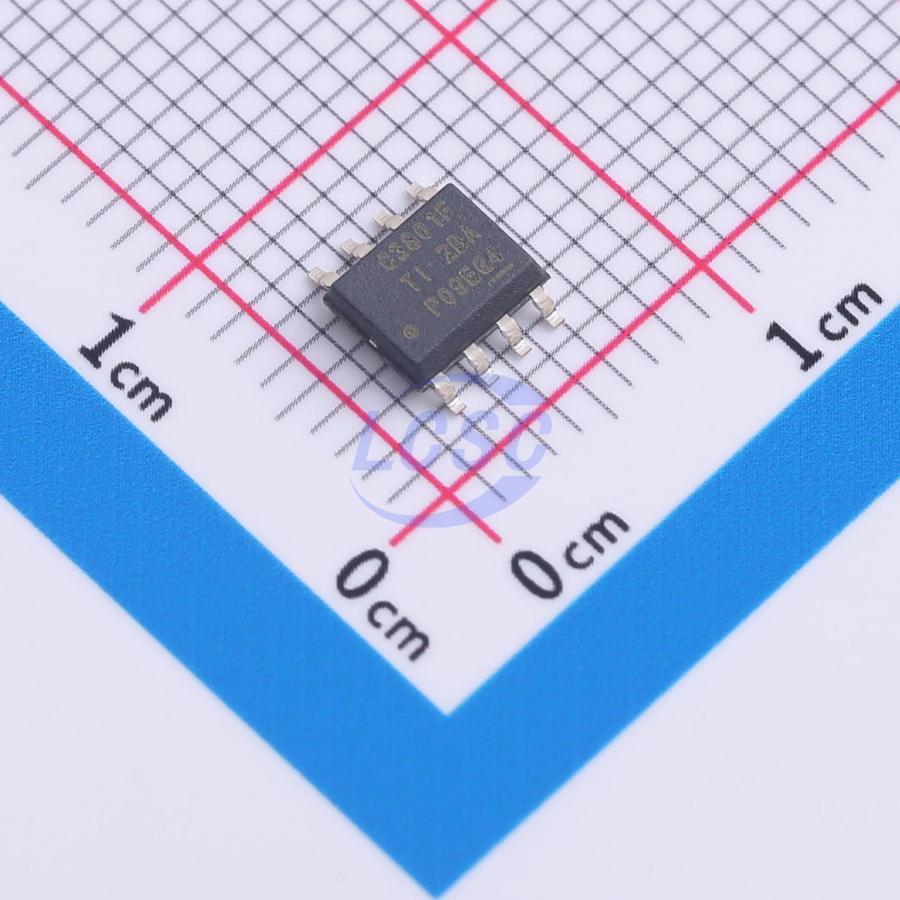

LMR38010FDDAR
Buck Switching Regulator IC Adjustable 1V~75V 1 Output 1A SO-PowerPAD-8
SO-PowerPAD-8ROHS3 CompliantActive
4.2V to 80V, 1A synchronous buck converter
- Manufacturer
- TI
- Manufacturer part #
- LMR38010FDDAR
- Store part #
- C5219308
- Package / case
- SO-PowerPAD-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64 in stock
#C5219308
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹341.43 | ₹341.43 |
| 10+ | ₹305.57 | ₹3,055.70 |
| 30+ | ₹280.32 | ₹8,409.60 |
| 100+ | ₹257.42 | ₹25,742.00 |
| 500+ | ₹246.85 | ₹1,23,425.00 |
| 1,000+ | ₹242.52 | ₹2,42,520.00 |
1 × ₹341.43
₹341.43
excl. GST
₹402.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMR38010FDDAR
₹341.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Function
- Step-down type
- Frequency - Switching
- 2.2MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.2V~80V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 1V~75V
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.183 g
Overview
Applications
- Industrial transportation
- Wireless infrastructure and network power delivery
- Factory automation and control
Key features
- Functional Safety documentation available to support functional safety system design, dedicated to harsh industrial applications
- Input voltage range: 4.2 V to 80 V
- 1A continuous output current
- 40μA ultra-low quiescent current
- Distance between VIN and GND pins greater than 1.5mm
- Adjustable switching frequency range: 200kHz to 2.2 MHz
- Synchronization with external clock frequency
- Spread spectrum option for reduced EMI
- 97% maximum duty cycle
- Supports startup with pre-biased output
- ±1.0% tolerance voltage reference at room temperature
- Precision enable pin
- Easy to use with minimal BOM
- Integrated synchronous rectification
- Built-in compensation for ease of use
- 8-pin HSOIC package with PowerPAD™
- PFM and forced PWM (FPWM) options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMR38020SDDAR#C3192337TI · SOP-8-EP | TI | SOP-8-EP | 3,219 | ₹321.61 · 3,219 in stock | View |
 | LMR38010FSDDAR#C5219309TI · SOPowerPAD-8 | TI | SOPowerPAD-8 | 21 | ₹638.15 · 21 in stock | View |
 | LMR38010SDDAR#C5219310TI · SOPowerPAD-8 | TI | SOPowerPAD-8 | 1,255 | ₹121.65 · 1,255 in stock | View |
 | LMR38020FDDAR#C5149193TI · SO-PowerPAD-8 | TI | SO-PowerPAD-8 | 17,874 | ₹124.75 · 17,874 in stock | View |
| LMR38020FSDDAR#C5219334TI · SOPowerPAD-8 | TI | SOPowerPAD-8 | 97 | ₹522.96 · 97 in stock | View | |
