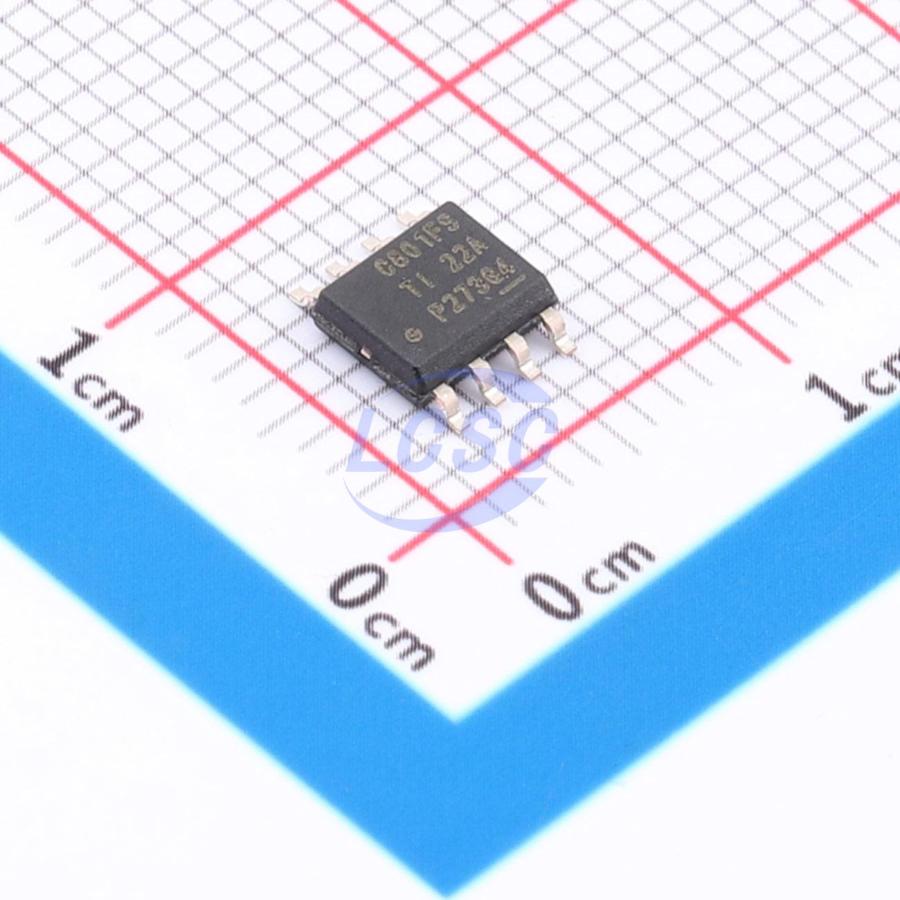

LMR38010FSDDAR
Buck Switching Regulator IC Adjustable 1V~75V 1 Output 1A SOPowerPAD-8
SOPowerPAD-8ROHS3 CompliantActive
4.2V to 80V, 1A synchronous buck converter
- Manufacturer
- TI
- Manufacturer part #
- LMR38010FSDDAR
- Store part #
- C5219309
- Package / case
- SOPowerPAD-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C5219309
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹638.15 | ₹638.15 |
| 10+ | ₹569.04 | ₹5,690.40 |
| 30+ | ₹533.84 | ₹16,015.20 |
| 100+ | ₹486.55 | ₹48,655.00 |
| 500+ | ₹469.48 | ₹2,34,740.00 |
| 1,000+ | ₹462.36 | ₹4,62,360.00 |
1 × ₹638.15
₹638.15
excl. GST
₹753.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMR38010FSDDAR
₹638.15 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 200kHz~2.2MHz
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.2V~80V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 1V~75V
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.181 g
Overview
Applications
- Industrial transportation
- Wireless infrastructure and network power delivery
- Factory automation and control
Key features
- Functional Safety documentation available to support functional safety system design, dedicated to harsh industrial applications
- Input voltage range: 4.2 V to 80 V
- 1A continuous output current
- 40μA ultra-low quiescent current
- Distance between VIN and GND pins greater than 1.5mm
- Adjustable switching frequency range: 200kHz to 2.2 MHz
- Synchronization with external clock frequency
- Spread spectrum option for reduced EMI
- 97% maximum duty cycle
- Supports startup with pre-biased output
- ±1.0% tolerance voltage reference at room temperature
- Precision enable pin
- Easy to use with minimal BOM
- Integrated synchronous rectification
- Built-in compensation for ease of use
- 8-pin HSOIC package with PowerPAD™
- PFM and forced PWM (FPWM) options
