NATLINEARDatasheet (PDF)

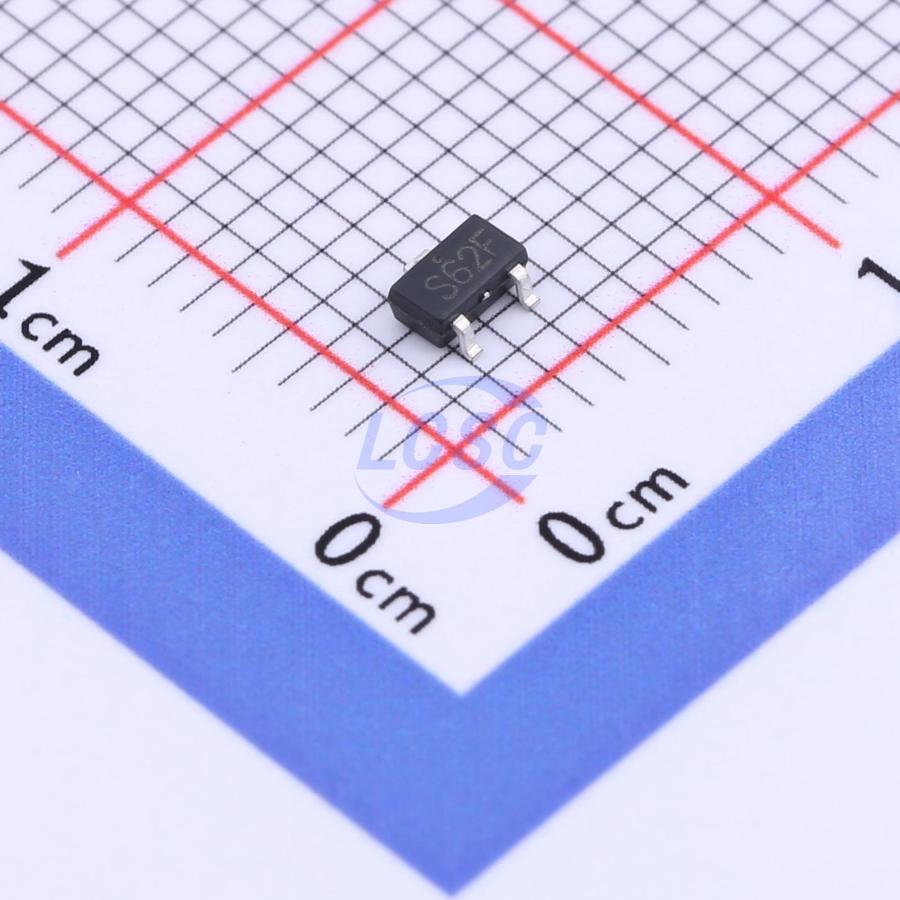

LN1130P332MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Low-dropout, high ripple rejection CMOS voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1130P332MR-G
- Store part #
- C3008027
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C3008027
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.55 | ₹95.50 |
| 100+ | ₹7.58 | ₹758.00 |
| 300+ | ₹6.60 | ₹1,980.00 |
| 3,000+ | ₹5.87 | ₹17,610.00 |
| 6,000+ | ₹5.28 | ₹31,680.00 |
| 9,000+ | ₹4.99 | ₹44,910.00 |
10 × ₹9.55
₹95.50
excl. GST
₹112.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1130P332MR-G
₹95.50 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown;Enable control
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
The LN1130 series are positive-voltage regulators developed using CMOS technology, featuring high ripple rejection, low dropout voltage, high-precision output voltage, and low quiescent current. The built-in low on-resistance transistor enables low dropout voltage and high output current capability. To prevent load current from exceeding the output transistor's current rating, overcurrent protection and thermal protection circuits are integrated. The SOT89-3L and SOT23-3L compact packages allow high-density mounting.
Applications
- Regulated power supply for DVD drives and CD-ROM drives
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for notebook computers
Key features
- Selectable output voltage: adjustable from 1.5V to 5.5V in 0.1V increments
- High output voltage accuracy: ±2.0% (customer requirement)
- Low dropout voltage: typical 250mV (3.0V output product, Iout = 100mA)
- Low quiescent current: typical 60μA
- High output current: up to 300mA (VIN ≥ VOUT + 1V)
- Built-in power ON/OFF control circuit: extends battery life
- High ripple rejection ratio: typical 55dB (at 1.0kHz)
- Compact package
- Built-in protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN1131P332MR-G#C236077NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 170 | ₹6.63 · 170 in stock | View |
 | LN1132P332MR-G#C193852NATLINEAR · SOT-23 | NATLINEAR | SOT-23 | 1,000 | ₹5.42 · 1,000 in stock | View |
