NATLINEARDatasheet (PDF)

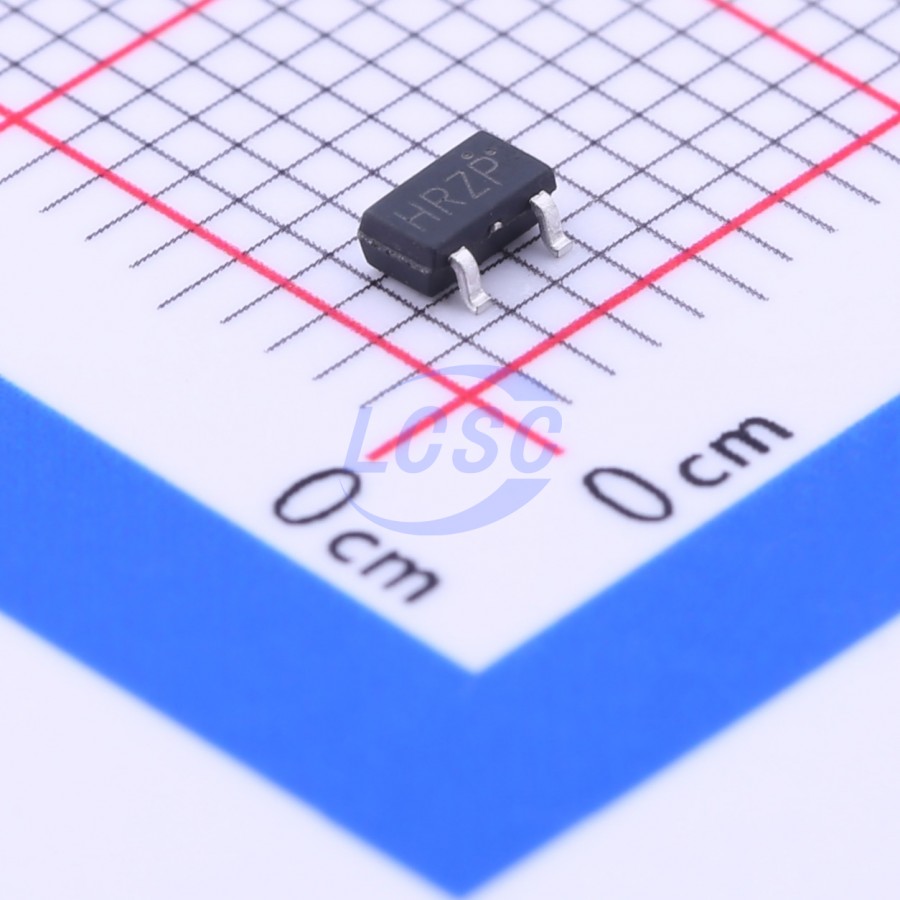

LN1132P302MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Low-power 300mA low-dropout CMOS voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1132P302MR-G
- Store part #
- C236370
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C236370
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.09 | ₹50.90 |
| 100+ | ₹4.02 | ₹402.00 |
| 300+ | ₹3.49 | ₹1,047.00 |
| 3,000+ | ₹3.10 | ₹9,300.00 |
| 6,000+ | ₹2.78 | ₹16,680.00 |
| 9,000+ | ₹2.62 | ₹23,580.00 |
10 × ₹5.09
₹50.90
excl. GST
₹60.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1132P302MR-G
₹50.90 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Enable control;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
The LN1132 series are low dropout, high-accuracy output voltage, low quiescent current positive voltage regulators developed using CMOS technology. Due to the built-in low on-resistance transistor, the dropout voltage is low, enabling large output currents. To prevent the load current from exceeding the current capacity of the output transistor, overcurrent protection and short-circuit protection circuits are integrated. In addition, the use of compact packages such as SOT-23-3 and SOT89-3 enables high-density mounting.
Applications
- Mobile phones
- Cordless phones
- Cameras, camcorders
- Handheld game consoles
- Handheld AV devices
- Voltage reference battery-powered equipment
Key features
- Selectable output voltage: adjustable from 1.2V to 6.0V in 0.1V increments
- High output voltage accuracy: up to ±2.0%
- Low input/output voltage differential: typical 160mV (3.0V output product, IOUT = 100mA)
- Low quiescent current: typical 5.0μA
- High output current: up to 300mA (VIN ≥ VOUT + 1V)
- Built-in protection: integrated overcurrent and load short-circuit protection
- Maximum operating voltage: 7V
- Compact packages: SOT-89-3, SOT-23-3, and custom packages upon request
