NATLINEARDatasheet (PDF)

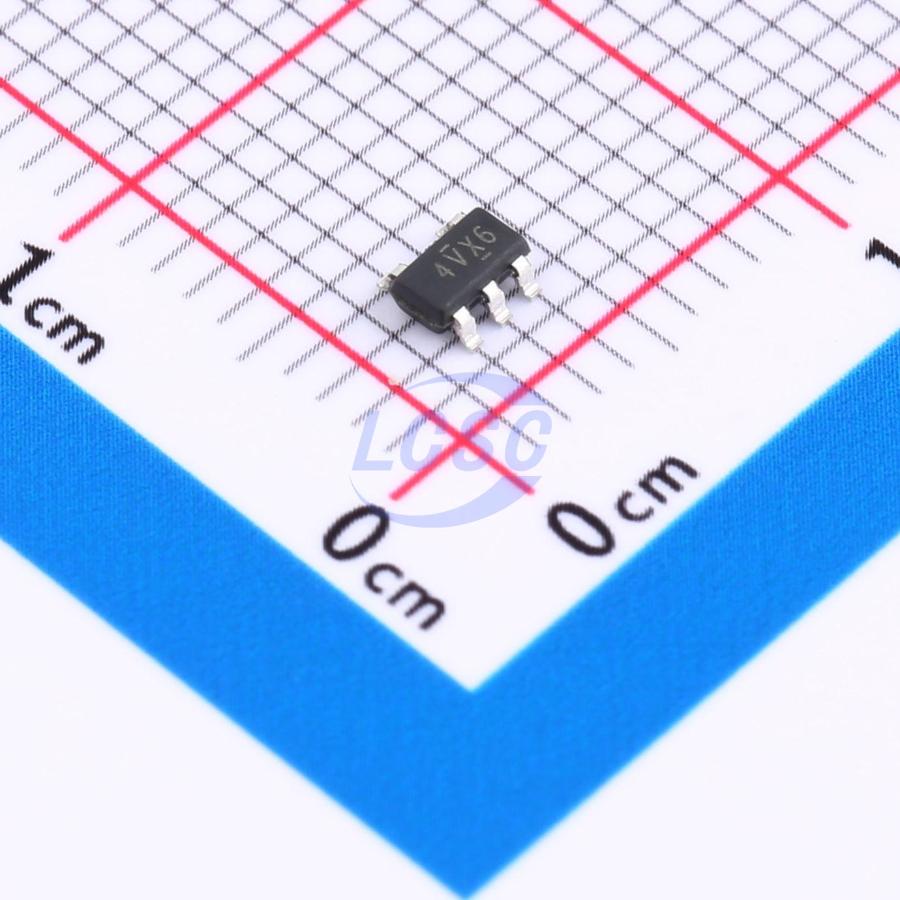

LN1134A282MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5ROHS CompliantActive
Low-power, low-dropout, medium-current voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1134A282MR-G
- Store part #
- C141422
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,460 in stock
#C141422
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹7.83 | ₹156.60 |
| 200+ | ₹5.97 | ₹1,194.00 |
| 600+ | ₹4.92 | ₹2,952.00 |
| 3,000+ | ₹4.30 | ₹12,900.00 |
| 9,000+ | ₹3.76 | ₹33,840.00 |
| 21,000+ | ₹3.47 | ₹72,870.00 |
20 × ₹7.83
₹156.60
excl. GST
₹184.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1134A282MR-G
₹156.60 for 20 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Enable control;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.049 g
Overview
The LN1134 series are high-speed, low-dropout, high-accuracy output voltage, low quiescent current positive voltage regulators developed using CMOS technology. Due to the built-in low on-resistance transistor, the dropout voltage is low, enabling large output current capability. To prevent the load current from exceeding the current capacity of the output transistor, overcurrent and other protection circuits are built in.
Applications
- Mobile phones
- Cordless phones
- Cameras, video recording equipment
- Portable gaming consoles
- Portable AV equipment
- Voltage reference sources for battery-powered systems
Key features
- Selectable output voltage: 1.0~5.0V range, 0.1V step increments
- High output voltage accuracy: ±2.0%
- Low dropout voltage: 300mV typical (3.0V output product, Iout = 100mA)
- High ripple rejection ratio: 70dB (10kHz)
- Low quiescent current: 70μA typical
- Maximum output current: 300mA (VIN ≥ VOUT + 1V)
- Standby current: less than 2μA
- Built-in protection: overcurrent protection, discharge transistor
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN1152B282MR-G#C3008001NATLINEAR · SOT-23-5L | NATLINEAR | SOT-23-5L | 2,930 | ₹6.77 · 2,930 in stock | View |
 | LN1154B282MR-G#C236377NATLINEAR · SOT-23-5L | NATLINEAR | SOT-23-5L | 2,640 | ₹4.62 · 2,640 in stock | View |
