NATLINEARDatasheet (PDF)

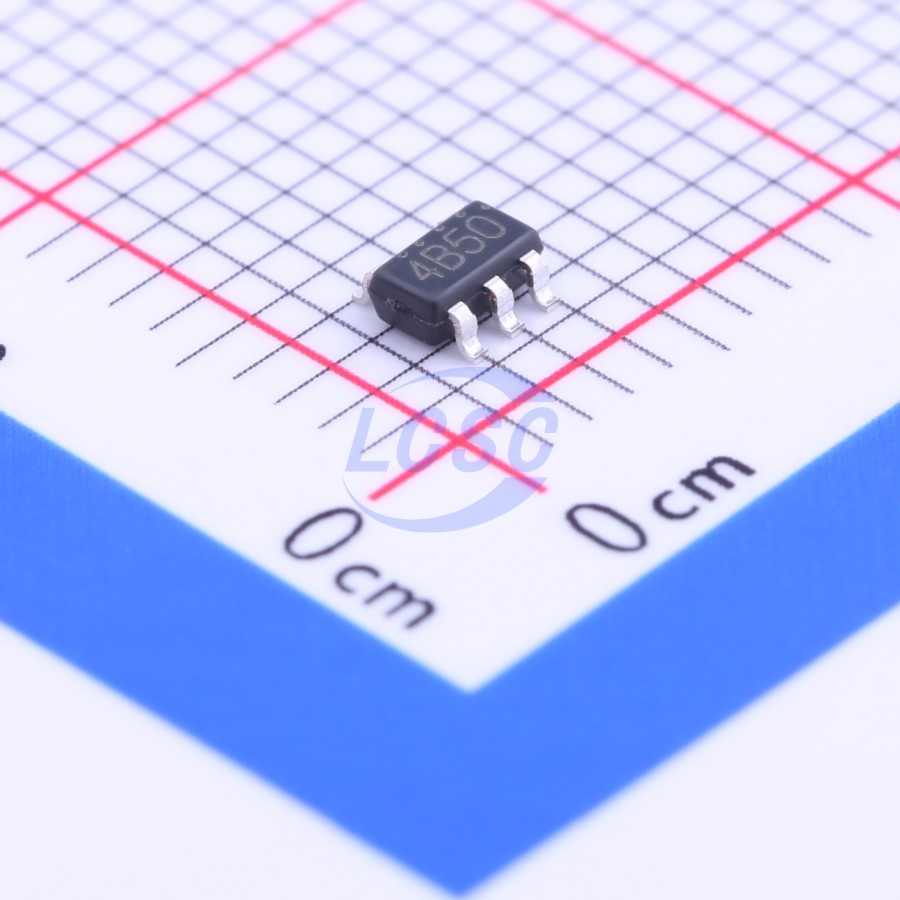

LN1138B362MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
300mA low-dropout reverse-current blocking CMOS voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1138B362MR-G
- Store part #
- C236373
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C236373
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.47 | ₹64.70 |
| 100+ | ₹5.11 | ₹511.00 |
| 300+ | ₹4.43 | ₹1,329.00 |
| 3,000+ | ₹3.93 | ₹11,790.00 |
| 6,000+ | ₹3.52 | ₹21,120.00 |
| 9,000+ | ₹3.32 | ₹29,880.00 |
| 21,000+ | ₹3.27 | ₹68,670.00 |
| 39,000+ | ₹3.24 | ₹1,26,360.00 |
10 × ₹6.47
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1138B362MR-G
₹64.70 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Enable control;Reverse-polarity current protection;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
The LN1138 series are high-speed, low-dropout, high-accuracy output voltage, low quiescent current positive voltage regulators developed using CMOS technology. Due to the built-in low on-resistance transistor, the dropout voltage is low, enabling large output currents. A built-in reverse current protection circuit limits the current through the low on-resistance transistor when the output voltage exceeds the input voltage, thereby protecting the IC from damage. To prevent the load current from exceeding the current capacity of the output transistor, overcurrent protection and short-circuit protection circuits are integrated.
Applications
- Mobile phones
- Cordless phones
- Cameras, video recording equipment
- Portable game consoles
- Portable AV equipment
- Battery-powered systems with reference voltage sources
Key features
- Selectable output voltage: adjustable from 1.5V to 5.0V in 0.1V steps
- High output voltage accuracy: ±2.0%
- Low dropout voltage: 300mV typical (3.0V output product, Iout = 100mA)
- High ripple rejection ratio: 70dB (10kHz)
- Low quiescent current: 70μA (TYP.)
- Maximum output current: 300mA (VIN ≥ VOUT + 1V)
- Standby current: less than 0.1μA
- Built-in protection: overcurrent and short-circuit protection circuits
- Reverse current protection: built-in reverse current injection protection circuit
