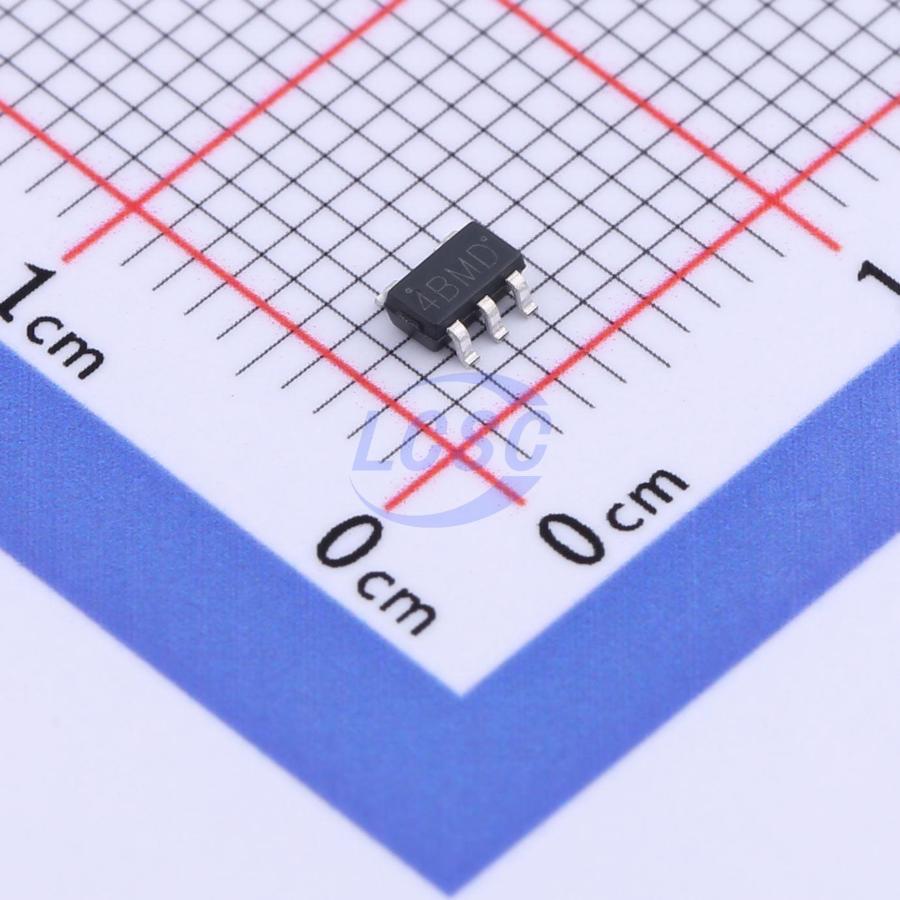

LN1138B502MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
300mA low-dropout CMOS voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1138B502MR-G
- Store part #
- C3007991
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C3007991
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.67 | ₹66.70 |
| 100+ | ₹5.23 | ₹523.00 |
| 300+ | ₹4.51 | ₹1,353.00 |
| 3,000+ | ₹3.97 | ₹11,910.00 |
| 6,000+ | ₹3.55 | ₹21,300.00 |
| 9,000+ | ₹3.32 | ₹29,880.00 |
10 × ₹6.67
₹66.70
excl. GST
₹78.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1138B502MR-G
₹66.70 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Enable control;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The LN1138 series are high-speed, low dropout, high-accuracy output voltage, low quiescent current positive voltage regulators developed using CMOS technology. Due to the built-in low on-resistance transistor, the dropout voltage is low, enabling large output currents. To prevent the load current from exceeding the current capacity of the output transistor, overcurrent protection and short-circuit protection circuits are built in.
Applications
- Mobile phones
- Cordless phones
- Cameras, video recording equipment
- Portable game consoles
- Portable AV equipment
- Voltage reference sources
- Battery-powered systems
Key features
- Selectable output voltage: adjustable from 1.5V to 5.0V in 0.1V steps
- High output voltage accuracy: ±2.0%
- Low dropout voltage: 300mV typical (3.0V output product, Iout = 100mA)
- High ripple rejection ratio: 60dB (1kHz)
- Low quiescent current: 60μA (TYP.)
- Maximum output current: 300mA (VIN ≥ VOUT +1V)
- Standby current: less than 0.1μA
- Built-in protection: overcurrent and short-circuit protection
