NATLINEARDatasheet (PDF)

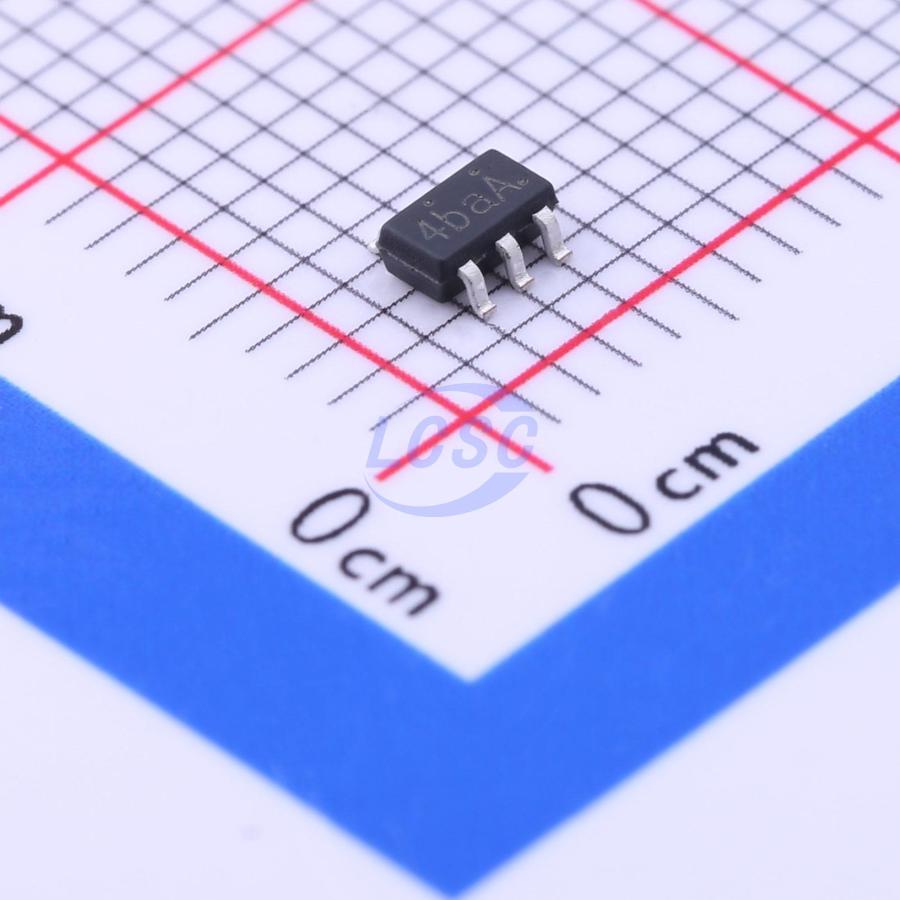

LN1139BAMR-G
800mV~7.4V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
300mA Low Dropout Programmable output CMos Voltage Regulators
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1139BAMR-G
- Store part #
- C236374
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,310 in stock
#C236374
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.78 | ₹77.80 |
| 100+ | ₹6.11 | ₹611.00 |
| 300+ | ₹5.28 | ₹1,584.00 |
| 3,000+ | ₹4.66 | ₹13,980.00 |
| 6,000+ | ₹4.15 | ₹24,900.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
10 × ₹7.78
₹77.80
excl. GST
₹91.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1139BAMR-G
₹77.80 for 10 + GST
Specifications
- Output Voltage
- 800mV~7.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Enable control;Operating status indication;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The LN1139 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a standard voltage source, an error correction, current limiter and a phase compensation circuit plus a driver transistor. External output feedback, customers can easily get the required voltage. In order to make the load current does not exceed the current capacity of the output transistor, built-in over-current protection, over temperature protection and short circuit protection. LN1139 may have the POWER GOOD indicator. When the FB voltage reaches 0.75V, PG output is high. When the FB drops below 0.7V, PG output is low. The internal op amp with advanced structure, the output capacitor can be omitted!
Applications
- Mobile phones
- Cordless phones
- Cameras, Video cameras
- Portable games
- Portable AV equipment
- Reference voltage
- Battery powered equipment
Key features
- programmable output: Minimum can go to 0.8V
- Highly Accurate: ±1.5%
- Dropout Voltage: 300mV @ 100mA (3.0V type)
- High Ripple Rejection: 50dB (10kHz)
- Low Power Consumption: 30μA (TYP.)
- Maximum Output Current: 300mA (VIN = VOUT + 1V)
- Standby Current: less than 0.1μA
- Internal protector: current limiter, short protector and over temperature protection
- Instructions with POWER GOOD
