NATLINEARDatasheet (PDF)

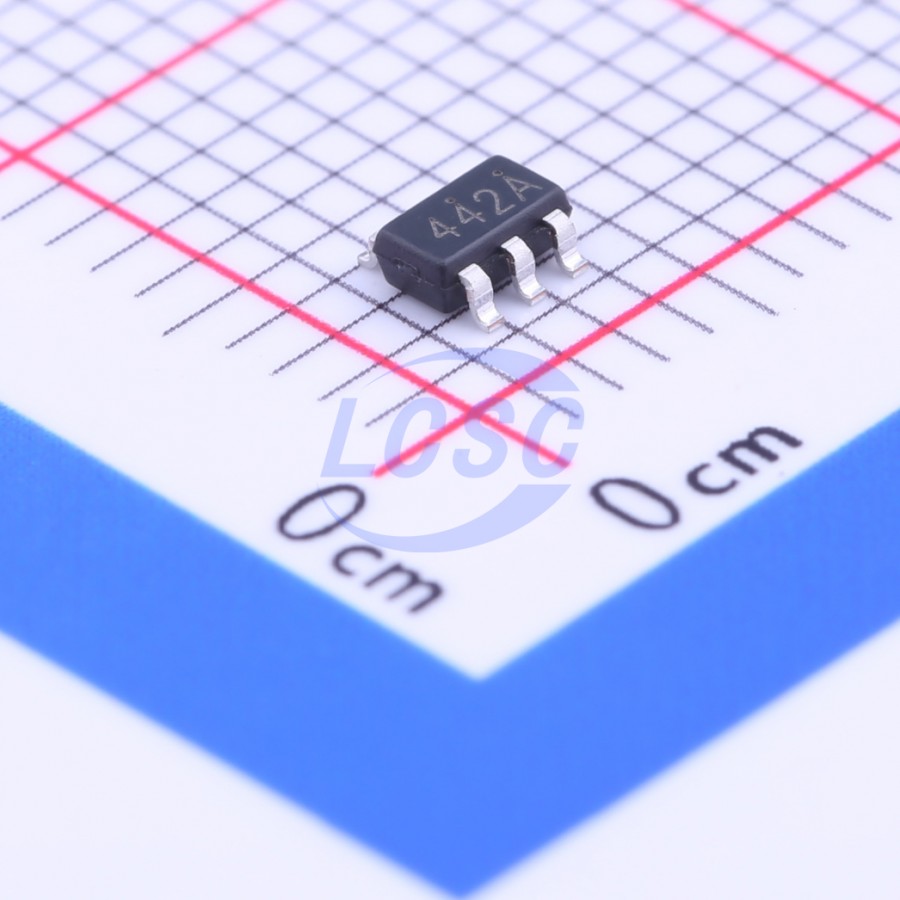

LN1152B332MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5L
SOT-23-5LROHS CompliantActive
Low-power, low-dropout, medium-current voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1152B332MR-G
- Store part #
- C219047
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,820 in stock
#C219047
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.16 | ₹61.60 |
| 100+ | ₹4.84 | ₹484.00 |
| 300+ | ₹4.18 | ₹1,254.00 |
| 3,000+ | ₹3.69 | ₹11,070.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.09 | ₹27,810.00 |
10 × ₹6.16
₹61.60
excl. GST
₹72.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1152B332MR-G
₹61.60 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
The LN1152 series are high-speed, low-dropout, high-accuracy output voltage, low quiescent current positive voltage regulators developed using CMOS technology. Due to the built-in low on-resistance transistor, the dropout voltage is low, enabling large output current. To prevent the load current from exceeding the current capacity of the output transistor, overcurrent and other protection circuits are built in.
Applications
- Mobile phones
- Cordless phones
- Cameras, video recording equipment
- Portable game consoles
- Portable AV equipment
- Voltage reference battery-powered systems
Key features
- Selectable output voltage: 1.0~5.0V range, 0.1V step
- High output voltage accuracy: ±2.0%
- Low dropout voltage: 100mV typical (3.0V output product, Iout = 100mA)
- High ripple rejection ratio: 70dB (1kHz)
- Low quiescent current: 40μA typical
- Maximum output current: 500mA (VIN ≥ VOUT + 1V)
- Standby current: less than 1μA
- Built-in protection: overcurrent protection, discharge transistor
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN5052B332MR-G#C185100NATLINEAR · SOT-23-5L | NATLINEAR | SOT-23-5L | On request | Price on request | Quote |
