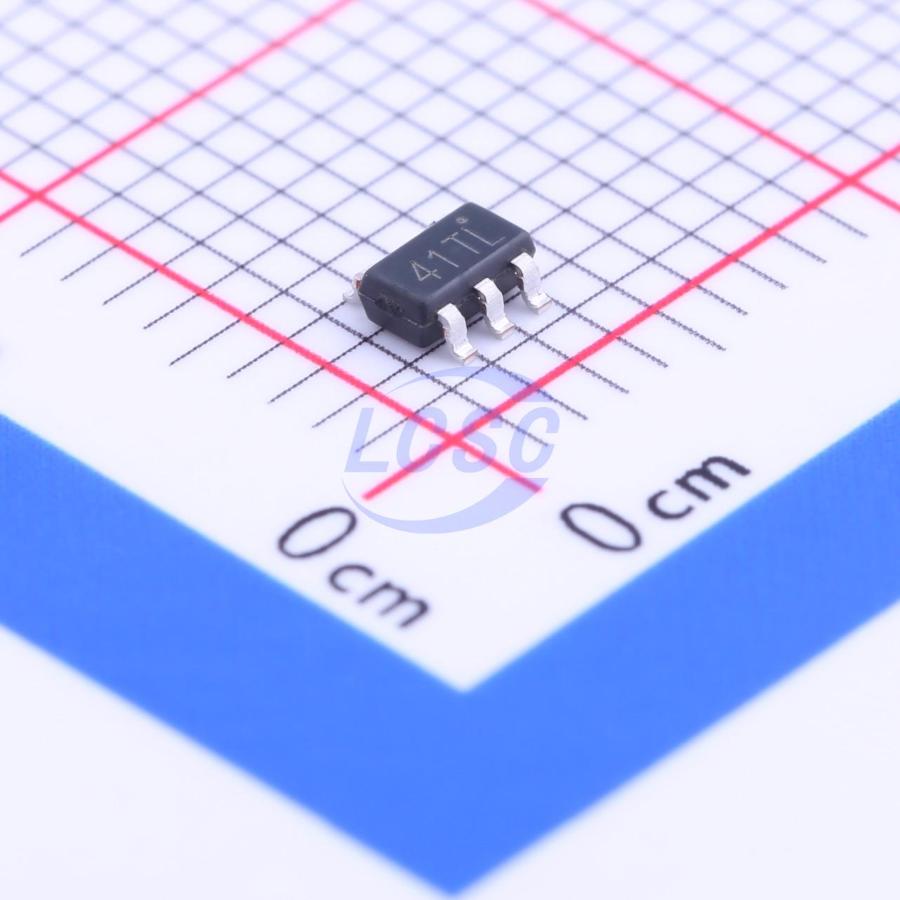

LN1154B252MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
Low-power, low-dropout, medium-current voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1154B252MR-G
- Store part #
- C236376
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,640 in stock
#C236376
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.66 | ₹113.20 |
| 200+ | ₹4.66 | ₹932.00 |
| 600+ | ₹4.11 | ₹2,466.00 |
| 3,000+ | ₹3.77 | ₹11,310.00 |
| 9,000+ | ₹3.49 | ₹31,410.00 |
| 21,000+ | ₹3.33 | ₹69,930.00 |
20 × ₹5.66
₹113.20
excl. GST
₹133.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1154B252MR-G
₹113.20 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Enable control;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
Applications
- Mobile phones
- Cordless phones
- Cameras, video recording equipment
- Portable game consoles
- Portable AV devices
- Voltage reference sources
- Battery-powered systems
Key features
- Developed with CMOS technology — high-speed, low dropout, high-accuracy output voltage, low quiescent current positive-voltage LDO regulator
- Built-in low on-resistance transistor for low dropout voltage and high output current capability
- Built-in protection circuits including overcurrent protection
- Selectable output voltage: 1.1~5.0V range, 0.1V step
- High output voltage accuracy: ±2.0%
- Low input-output voltage dropout: typical 180mV (3.0V output product, at Iout = 100mA)
- High ripple rejection ratio: 60dB (1 kHz)
- Low quiescent current: typical 60μA
- Maximum output current: 300mA (VIN ≥ VOUT + 1V)
- Standby current: less than 1μA
- Built-in discharge transistor
