NATLINEARDatasheet (PDF)

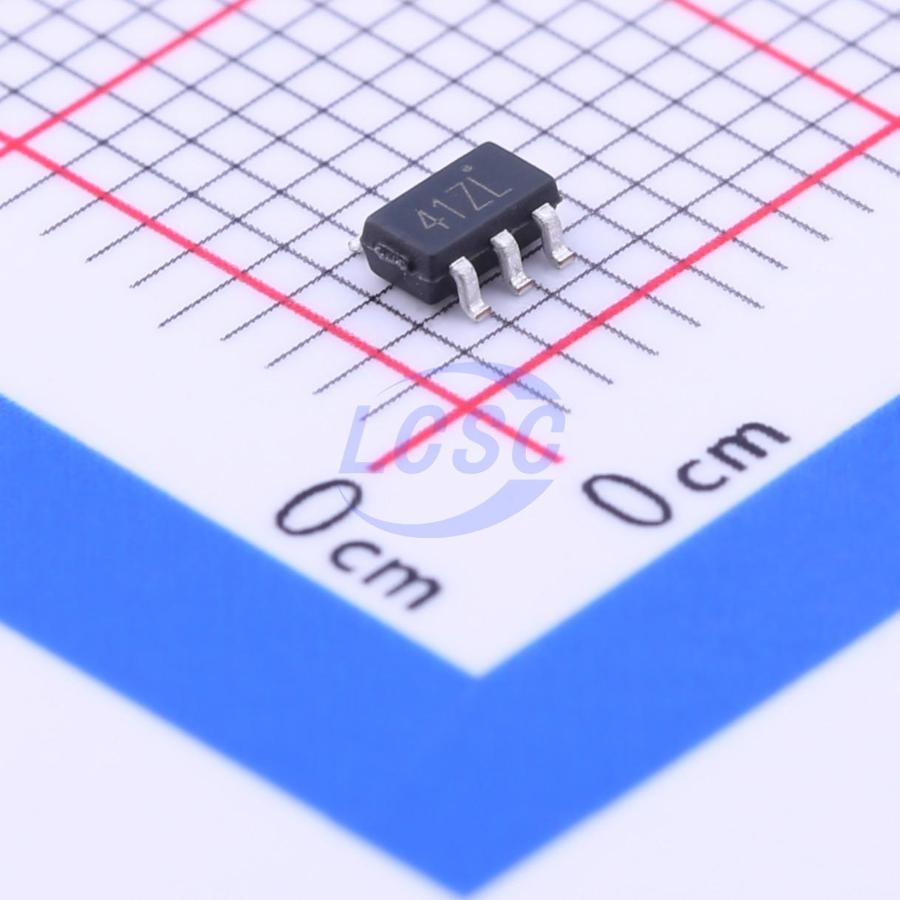

LN1154B302MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
Low-power, low-dropout, medium-current voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1154B302MR-G
- Store part #
- C236378
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C236378
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.52 | ₹90.40 |
| 200+ | ₹3.52 | ₹704.00 |
| 600+ | ₹2.96 | ₹1,776.00 |
| 3,000+ | ₹2.63 | ₹7,890.00 |
| 9,000+ | ₹2.34 | ₹21,060.00 |
| 21,000+ | ₹2.20 | ₹46,200.00 |
20 × ₹4.52
₹90.40
excl. GST
₹106.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1154B302MR-G
₹90.40 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Enable control;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.041 g
Overview
The LN1154 series are high-speed, low-dropout, high-accuracy output voltage, low quiescent current positive voltage regulators developed using CMOS technology. Due to the built-in low on-resistance transistor, the dropout voltage is low, enabling large output current capability. To prevent load current from exceeding the current capacity of the output transistor, overcurrent and other protection circuits are built in.
Applications
- Mobile phones
- Cordless phones
- Cameras, video recording equipment
- Portable game consoles
- Portable AV equipment
- Voltage reference sources
- Battery-powered systems
Key features
- High-speed, low dropout, high-accuracy output voltage, low quiescent current
- Built-in low on-resistance transistor for low dropout voltage and high output current capability
- Built-in overcurrent and other protection circuits
- Selectable output voltage: adjustable from 1.1V to 5.0V in 0.1V steps
- High output voltage accuracy: ±2.0%
- Low input/output dropout voltage: typical 180mV (3.0V output product, at Iout = 100mA)
- High ripple rejection ratio: 60dB (1 kHz)
- Low quiescent current: typical 60μA
- Maximum output current: 300mA (VIN ≥ VOUT + 1V)
- Standby current: less than 1μA
- Built-in discharge transistor
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN1134A302MR-G#C141421NATLINEAR · SOT-23-5 | NATLINEAR | SOT-23-5 | 780 | ₹5.31 · 780 in stock | View |
