NATLINEARDatasheet (PDF)

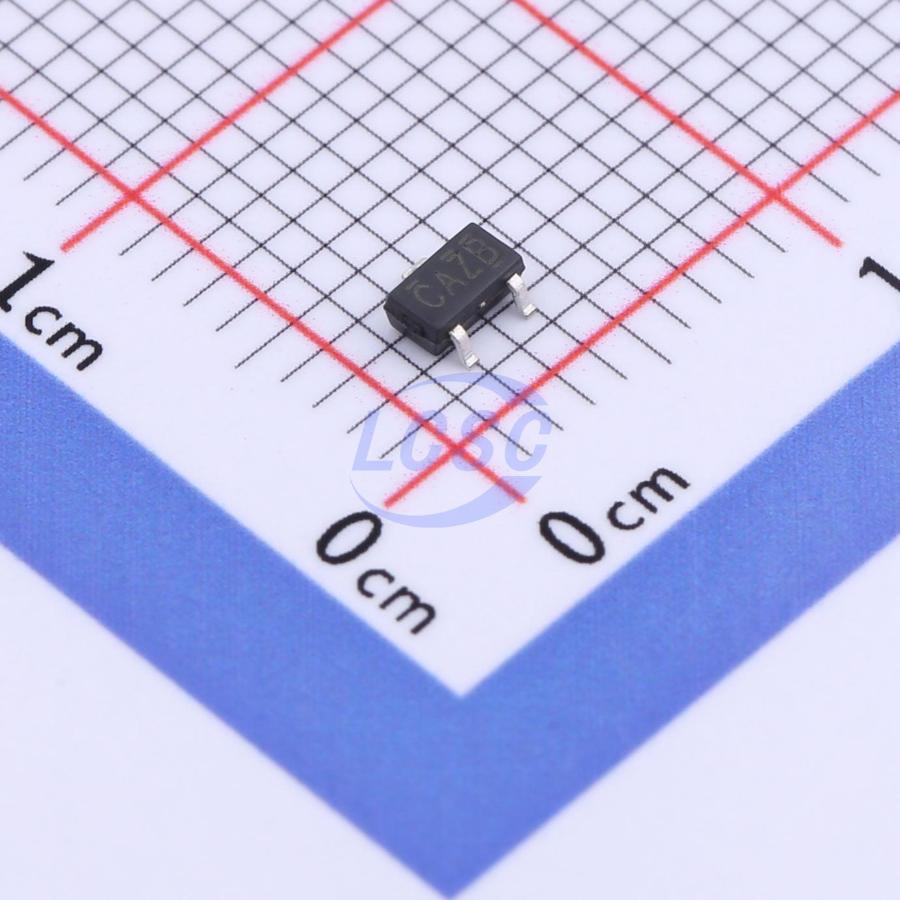

LN61CC3002MR-G
Supervisor Push-Pull 1 Channel SOT-23-3L
SOT-23-3LROHS CompliantActive
High-precision, low-power, small-package voltage detection chip
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN61CC3002MR-G
- Store part #
- C3008008
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,610 in stock
#C3008008
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.22 | ₹72.20 |
| 100+ | ₹5.73 | ₹573.00 |
| 300+ | ₹4.99 | ₹1,497.00 |
| 3,000+ | ₹4.42 | ₹13,260.00 |
| 6,000+ | ₹3.98 | ₹23,880.00 |
| 9,000+ | ₹3.76 | ₹33,840.00 |
10 × ₹7.22
₹72.20
excl. GST
₹85.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN61CC3002MR-G
₹72.20 for 10 + GST
Specifications
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- standby current
- 2uA
- Voltage - Supply
- 700mV~7V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.021 g
Overview
The LN61C series is a high-precision, low-power, compact voltage detection IC developed using CMOS technology. The detection voltage maintains extremely high accuracy with minimal temperature drift. Customers can choose between CMOS output or Open Drain output.
Applications
- Microprocessor reset circuit
- Memory battery backup circuit power-on reset circuit
- Supply failure detection
- System battery life and charge voltage monitoring. Window comparator
- Waveform sharpening circuit
Key features
- High accuracy: ±2%
- Low power consumption: 2.0μA (VIN = 1.5V)
- Detection voltage range: 1.0V ~ 6.0V, 100mV steps
- Operating voltage range: 0.7V ~ 7.0V
- Detection voltage temperature characteristics: ±100ppm (typ.)
- Output configuration: N-channel open drain or CMOS
