NATLINEARDatasheet (PDF)

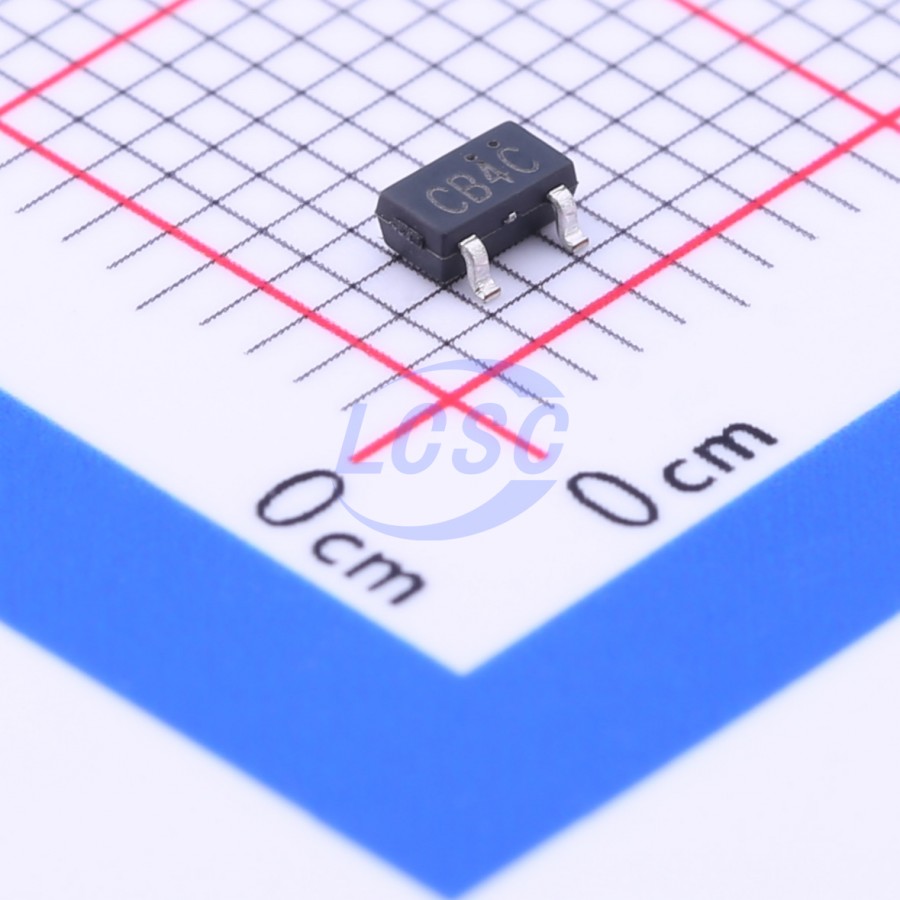

LN61CC3502MR-G
Active Low 700mV~8V 1 SOT-23 Supervisors RoHS
SOT-23ROHS CompliantActive
Ultra-Small Package High-Precision Voltage Detector
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN61CC3502MR-G
- Store part #
- C236389
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,810 in stock
#C236389
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.48 | ₹64.80 |
| 100+ | ₹5.12 | ₹512.00 |
| 300+ | ₹4.45 | ₹1,335.00 |
| 3,000+ | ₹3.94 | ₹11,820.00 |
| 6,000+ | ₹3.53 | ₹21,180.00 |
| 9,000+ | ₹3.32 | ₹29,880.00 |
10 × ₹6.48
₹64.80
excl. GST
₹76.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN61CC3502MR-G
₹64.80 for 10 + GST
Specifications
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 700mV~8V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The LN61C series is a series of high-precision voltage detectors developed using CMOS process. The detection voltage is fixed internally with an accuracy of ±2.0%. Two output forms, Nch open-drain and CMOS output, are available. Ultra-low current consumption and miniature package lineup can meet demand from the portable device applications.
Applications
- Battery checkers
- Power failure detectors
- Power monitor for portable equipments such as pagers, calculators, electronic notebooks and remote controllers.
- Constant voltage power monitor for cameras, video equipments and communication devices.
- Power monitor for microcomputers and reset for CPUs.
Key features
- Ultra-low current consumption 2.0 μA typ. (Vin = 1.5V)
- High-precision detection voltage ±2.0%
- Operating voltage range 0.7 V to 8.0 V
- Detection voltage 1.0 V to 6.0 V (0.1 V step)
- Output form Nch open-drain output (Active Low) or CMOS output (Active Low)
