NATLINEARDatasheet (PDF)

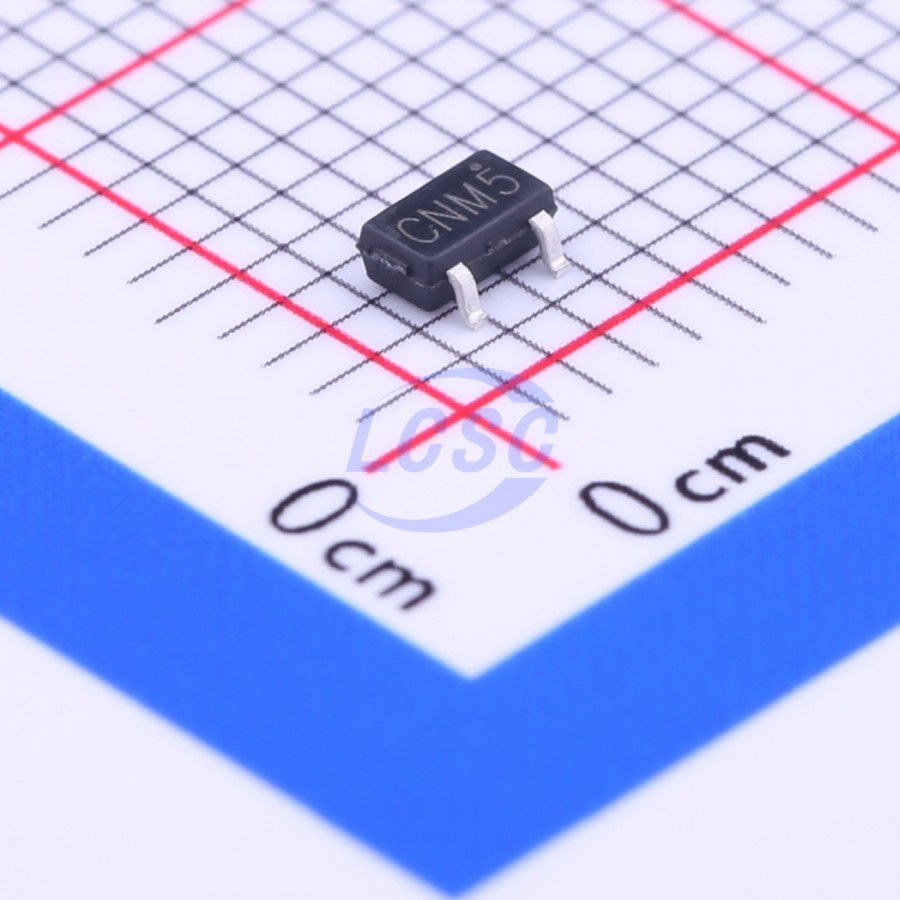

LN61CN2002MR-G
Supervisor Open Drain 1 Channel SOT-23-3L
SOT-23-3LROHS CompliantActive
High-precision, low-power, small-package voltage detection chip
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN61CN2002MR-G
- Store part #
- C236391
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C236391
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.12 | ₹71.20 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹5.01 | ₹1,503.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.66 | ₹21,960.00 |
| 9,000+ | ₹3.45 | ₹31,050.00 |
10 × ₹7.12
₹71.20
excl. GST
₹84.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN61CN2002MR-G
₹71.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- standby current
- 2uA
- Voltage - Supply
- 700mV~8V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The LN61C series are high-precision, low-power, compact voltage detection ICs developed using CMOS technology. The detection voltage maintains extremely high accuracy with minimal temperature drift. CMOS output or Open Drain output is available for customer selection.
Applications
- Microprocessor reset circuits
- Memory battery backup circuits
- Power-on reset circuits
- Power failure detection systems
- Battery life and charge voltage monitoring
- Window comparators
- Waveform sharpening circuits
- Overcharge protection circuits
- Detection voltage adjustment circuits
Key features
- High accuracy: ±2%
- Low power consumption: 2.0μA (Vin = 1.5V)
- Detection voltage range: 1.0V ~ 6.0V, 100mV steps
- Operating voltage range: 0.7V ~ 8.0V
- Detection voltage temperature coefficient: ±100ppm (typ.)
- Output configuration: N-channel open drain or CMOS
