NATLINEARDatasheet (PDF)

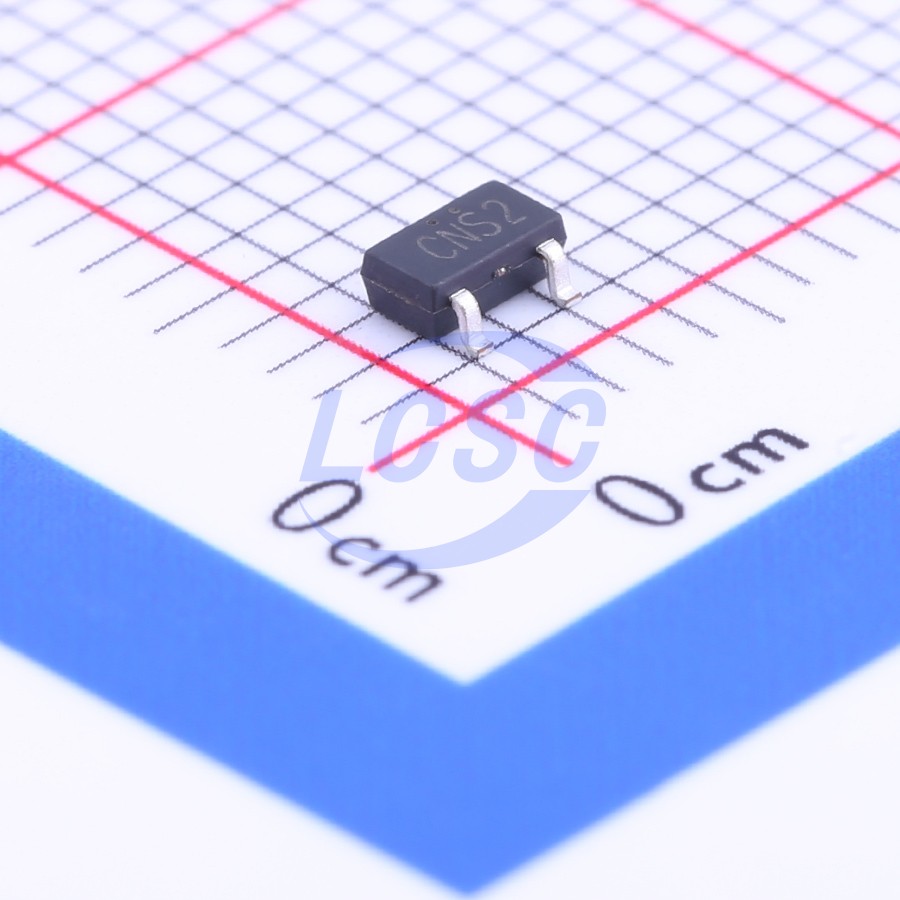

LN61CN2402MR-G
Supervisor Open Drain 1 Channel SOT-23
SOT-23ROHS CompliantActive
High-precision, low-power, small-package voltage detection chip
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN61CN2402MR-G
- Store part #
- C141418
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C141418
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.12 | ₹71.20 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹5.00 | ₹1,500.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.66 | ₹21,960.00 |
| 9,000+ | ₹3.45 | ₹31,050.00 |
10 × ₹7.12
₹71.20
excl. GST
₹84.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN61CN2402MR-G
₹71.20 for 10 + GST
Specifications
- Reset Timeout
- 0ms
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- standby current
- 2uA
- Voltage - Supply
- 700mV~8V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The LN61C series are high-precision, low-power, compact voltage detector ICs developed using CMOS technology. The detection voltage maintains extremely high accuracy with minimal temperature drift. Customers can choose between CMOS output and Open Drain output.
Applications
- Microprocessor reset circuits
- Memory battery backup circuits
- Power-on reset circuits
- Supply failure detection
- System battery life and charge voltage monitoring. Window comparator
- Waveform sharpening circuits
Key features
- High accuracy: ±2%
- Low power consumption: 2.0μA (Vin = 1.5V)
- Detection voltage range: 1.0V ~ 6.0V, 100mV steps
- Operating voltage range: 0.7V ~ 8.0V
- Detection voltage temperature characteristics: ±100ppm (typ.)
- Output configuration: N-channel open drain or CMOS
