NATLINEARDatasheet (PDF)

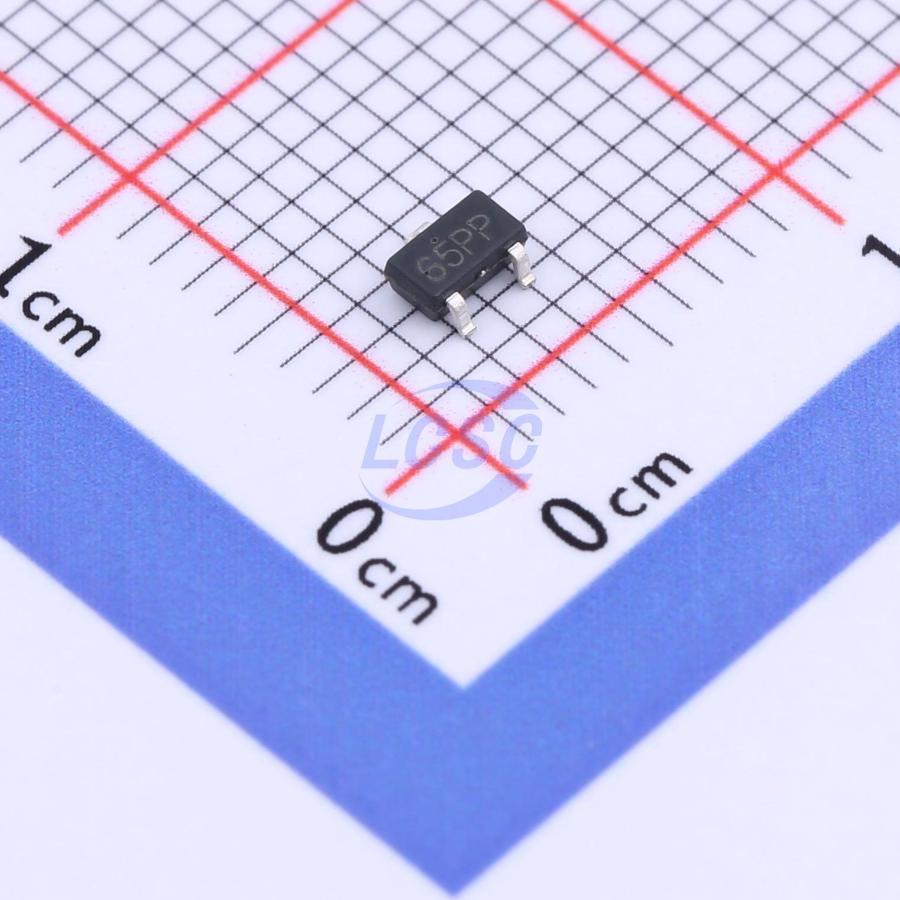

LN6206P222MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Low-power, low-dropout, medium-output-current CMOS voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN6206P222MR-G
- Store part #
- C3008044
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C3008044
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.95 | ₹99.00 |
| 200+ | ₹3.82 | ₹764.00 |
| 600+ | ₹3.20 | ₹1,920.00 |
| 3,000+ | ₹2.83 | ₹8,490.00 |
| 9,000+ | ₹2.51 | ₹22,590.00 |
| 21,000+ | ₹2.34 | ₹49,140.00 |
20 × ₹4.95
₹99.00
excl. GST
₹116.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN6206P222MR-G
₹99.00 for 20 + GST
Specifications
- Output Voltage
- 2.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3.5uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.021 g
Overview
The LN6206 series are low-dropout, high-accuracy output voltage, low-quiescent-current positive-voltage regulators developed using CMOS technology. Due to the built-in low on-resistance transistor, the dropout voltage is low, enabling large output current capability. To prevent the load current from exceeding the current capacity of the output transistor, overcurrent protection and short-circuit protection circuits are integrated. The use of compact packages such as SOT89-3L, SOT23-3L, and SOT23-3B enables high-density mounting.
Applications
- Battery-powered devices
- Voltage references
- Cameras, video cameras
- Mobile phones
- Communication equipment
Key features
- Selectable output voltage: adjustable from 1.2V to 5.0V in 0.1V increments
- High output voltage accuracy: ±1.0% or ±2.0%
- Low quiescent current: 2μA (TYP.)
- Low dropout voltage: 160mV typical (3.0V output, Iout = 50mA)
- High output current: up to 250mA (VIN ≥ VOUT + 1V)
- Built-in protection: overcurrent and short-circuit protection
- Compact packages: SOT89-3L, SOT23-3L, SOT23-3B, and custom packages available
