NATLINEARDatasheet (PDF)

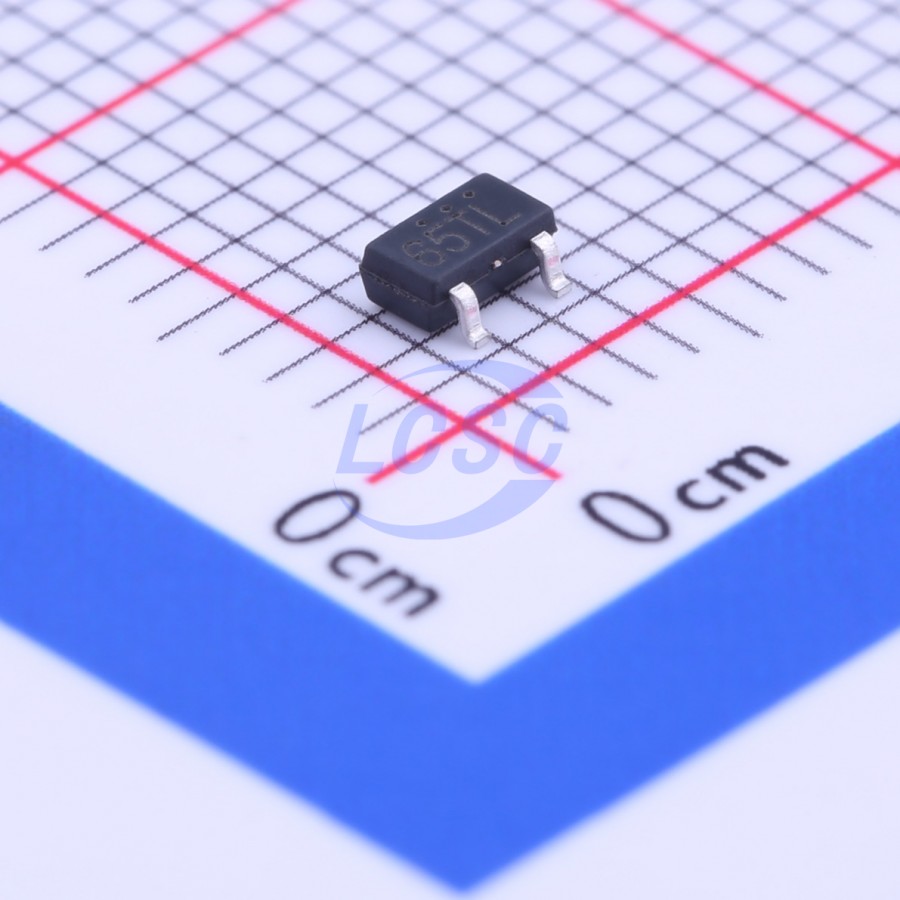

LN6206P252MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Low-power, low-dropout, medium-output current CMOS voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN6206P252MR-G
- Store part #
- C141410
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,140 in stock
#C141410
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.79 | ₹95.80 |
| 200+ | ₹3.73 | ₹746.00 |
| 600+ | ₹3.15 | ₹1,890.00 |
| 3,000+ | ₹2.79 | ₹8,370.00 |
| 9,000+ | ₹2.49 | ₹22,410.00 |
| 21,000+ | ₹2.32 | ₹48,720.00 |
20 × ₹4.79
₹95.80
excl. GST
₹113.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN6206P252MR-G
₹95.80 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.046 g
Overview
The LN6206 series are low dropout, high-accuracy output voltage, low quiescent current positive voltage regulators developed using CMOS technology. Due to the built-in low on-resistance transistor, the dropout voltage is low, enabling large output currents. To prevent the load current from exceeding the current capacity of the output transistor, overcurrent protection and short-circuit protection circuits are built in. The use of compact packages such as SOT-89-3, SOT-23-3L, and SOT-23-3B allows for high-density mounting.
Applications
- Battery-powered devices
- Voltage references
- Cameras, video cameras
- Mobile phones
- Communication equipment
Key features
- Selectable output voltage: adjustable from 1.2V to 5.0V in 0.1V increments
- High output voltage accuracy: ±1.0% or ±2.0%
- Low quiescent current: 2μA (TYP.)
- Low dropout voltage: 160mV typical (3.0V output, IOUT = 50mA)
- High output current: up to 250mA (VIN ≥ VOUT + 1V)
- Built-in protection: overcurrent and short-circuit protection
- Compact packages: SOT-89-3, SOT-23-3, SOT23-3B, and custom packages
