NATLINEARDatasheet (PDF)

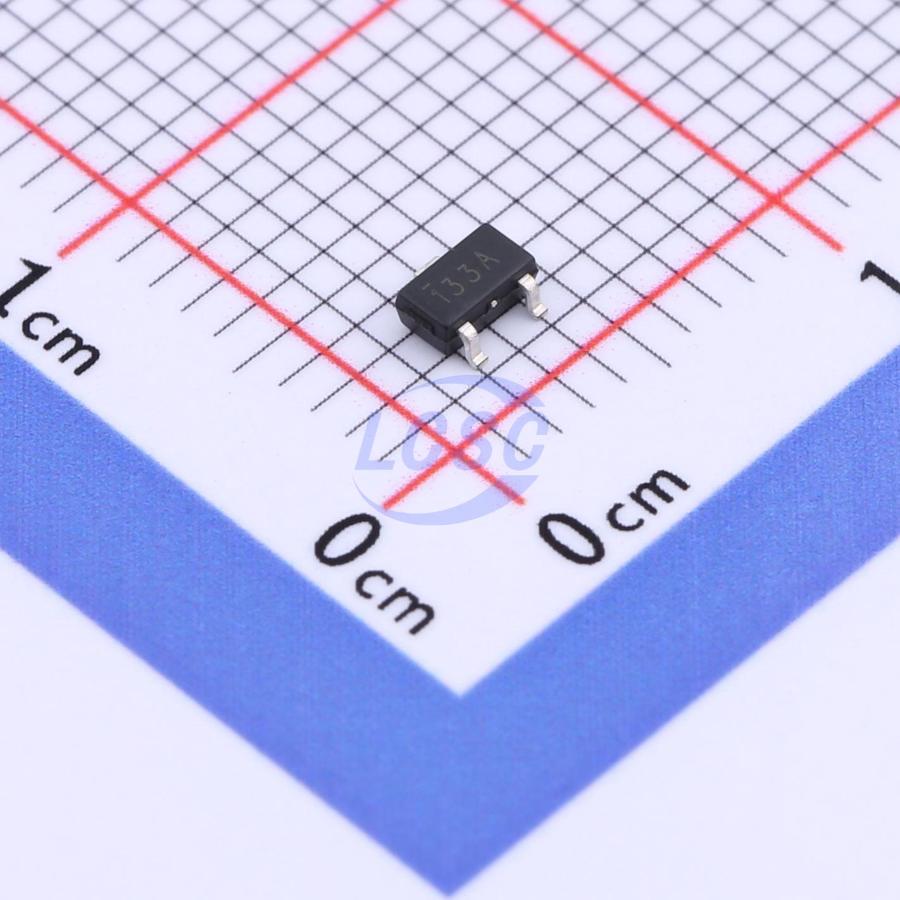

LN7133MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 70mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Low-power, high-input-voltage CMOS voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN7133MR-G
- Store part #
- C3007985
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C3007985
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.97 | ₹89.70 |
| 100+ | ₹7.09 | ₹709.00 |
| 300+ | ₹6.15 | ₹1,845.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹8.97
₹89.70
excl. GST
₹105.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN7133MR-G
₹89.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 70mA
- Operating Voltage
- 28V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The LN71XX series is a three-terminal, high input voltage, low dropout, low output current voltage regulator implemented in CMOS technology. It delivers an output current of up to 70mA with a maximum input voltage of 28V. The fixed output voltage ranges from 1.8V to 5.0V, and adjustable output voltage can also be achieved through external application circuits. The CMOS process enables low dropout voltage and low quiescent current. Built-in overcurrent protection and short-circuit protection circuits ensure safe operation and extended service life.
Applications
- Battery-powered devices
- Communication equipment
Key features
- Low quiescent current, typical 2.5μA
- High accuracy output, up to ±2%
- Low temperature coefficient <±100ppm/°C
- High input voltage, up to 28V
- High input voltage withstand, ≥40V
- Built-in protection circuits: overcurrent protection and short-circuit protection
- Output current 70mA (maximum)
- Small package options: TO-92, SOT89-3L, SOT23-3L, SOT23-5L, and custom packages upon request
