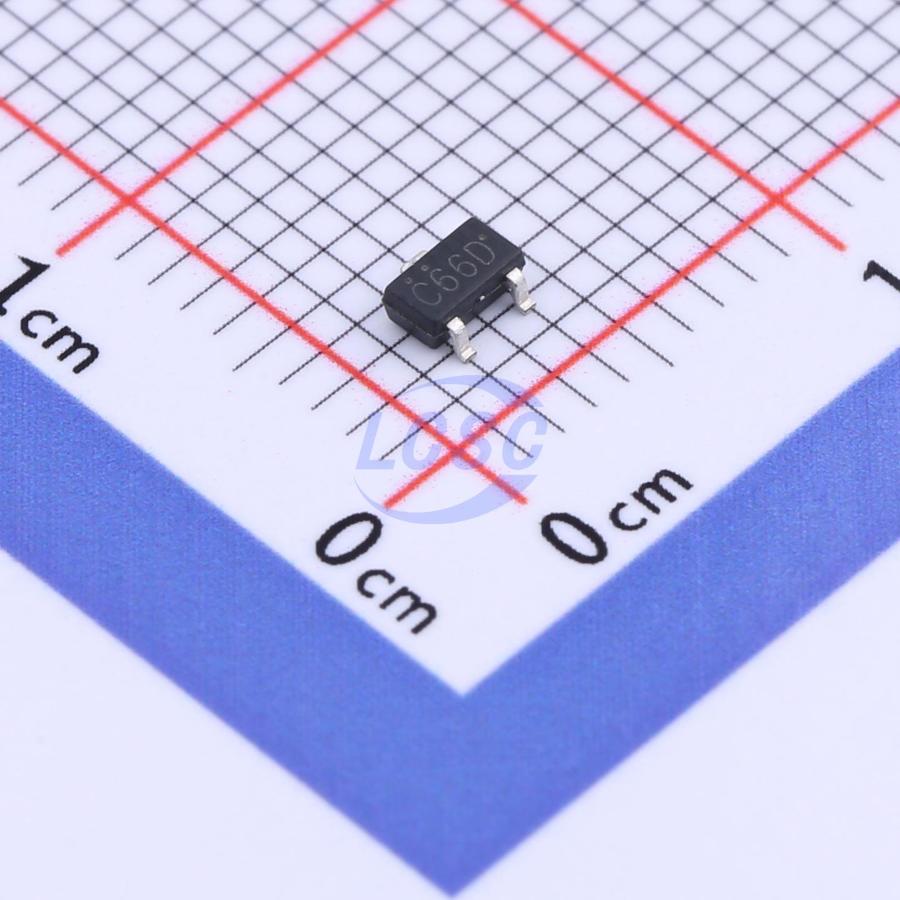

LN809C2641MR-G
Supervisor Push-Pull SOT-23-3L
Built-in delay, high-precision, and low-power voltage detection
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN809C2641MR-G
- Store part #
- C3007983
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,570 in stock
#C3007983
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.62 | ₹56.20 |
| 100+ | ₹4.48 | ₹448.00 |
| 300+ | ₹3.90 | ₹1,170.00 |
| 3,000+ | ₹3.48 | ₹10,440.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.62
₹56.20
excl. GST
₹66.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN809C2641MR-G
₹56.20 for 10 + GST
Specifications
- output type
- Push-pull
- Reset Timeout
- 50ms
- Operating Temperature
- -30℃~+85℃
- Reset Active Level
- Active Low
- standby current
- 1uA
- Voltage - Supply
- 700mV~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The LN809 series are low-power voltage detector ICs designed for microprocessors and electronic systems, featuring high accuracy and low temperature drift. The detection voltage range of this series covers the requirements of most electronic products. Low quiescent current is a key advantage. The product family includes both CMOS output and open-drain N-channel output variants. The built-in delay reduces the number of peripheral components required in application circuits.
Applications
- Microprocessor reset circuits
- Memory battery backup circuits
- Power-on reset and power failure detection circuits
- System battery life and charge voltage monitoring
- Delay circuits
Key features
- High accuracy: ±1%, ±2%
- Low power consumption: less than 1.5μA
- Detection voltage points: 2.63V, 2.93V, 3.08V, 4.0V, 4.38V and 4.63V
- Operating range: 0.7V ~ 6.0V
- Detection voltage temperature coefficient: ±100ppm/℃ (TYP.)
- Built-in delay: typical values 50ms, 100ms, 200ms, 400ms selectable
- Output type: N-channel open-drain or CMOS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN61CC2502MR-G#C236387NATLINEAR · SOT-23 | NATLINEAR | SOT-23 | 270 | ₹6.50 · 270 in stock | View |
