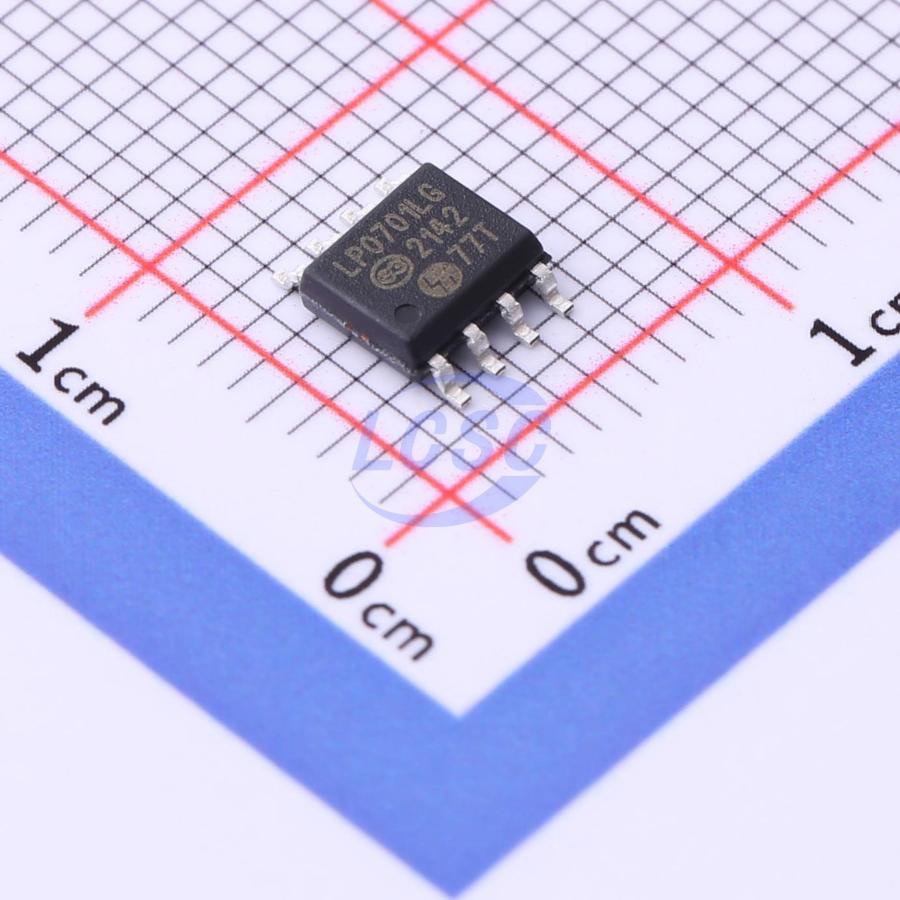

LP0701LG-G
P-Channel 16.5V 1.25A 1.25W Surface Mount SOIC-8
SOIC-8ROHS3 CompliantActive
MOSFET P-CH 16.5V 1.25A SOIC-8
- Manufacturer
- MICROCHIP
- Manufacturer part #
- LP0701LG-G
- Store part #
- C622921
- Package / case
- SOIC-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C622921
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹605.40 | ₹605.40 |
| 10+ | ₹522.23 | ₹5,222.30 |
| 30+ | ₹472.60 | ₹14,178.00 |
| 100+ | ₹422.58 | ₹42,258.00 |
| 500+ | ₹399.60 | ₹1,99,800.00 |
| 1,000+ | ₹389.23 | ₹3,89,230.00 |
1 × ₹605.40
₹605.40
excl. GST
₹714.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
LP0701LG-G
₹605.40 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 100pF
- Ciss-Input Capacitance
- 250pF
- Pd - Power Dissipation
- 1.25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 16.5V
- Current - Continuous Drain(Id)
- 1.25A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 1.7Ω@3V
- Number
- 1 P-Channel
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
The LP0701 Enhancement-mode (normally-off ) transistor uses a lateral MOS structure and a well-proven silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperature coefficient inherent in MOS devices. Characteristic of all MOS structures, this device is free from thermal runaway and thermally induced secondary breakdown. The low threshold voltage and low on-resistance characteristics are ideally suited for handheld and battery-operated applications.
Applications
- Logic-Level Interfaces
- Solid-State Relays
- Battery-Operated Systems
- Photovoltaic Drives
- Analog Switches
- General Purpose Line Drivers
Key features
- Ultra-Low Threshold
- High Input Impedance
- Low Input Capacitance
- Fast Switching Speeds
- Low On-Resistance
- Freedom from Secondary Breakdown
- Low Input and Output Leakage
