LOWPOWERDatasheet (PDF)

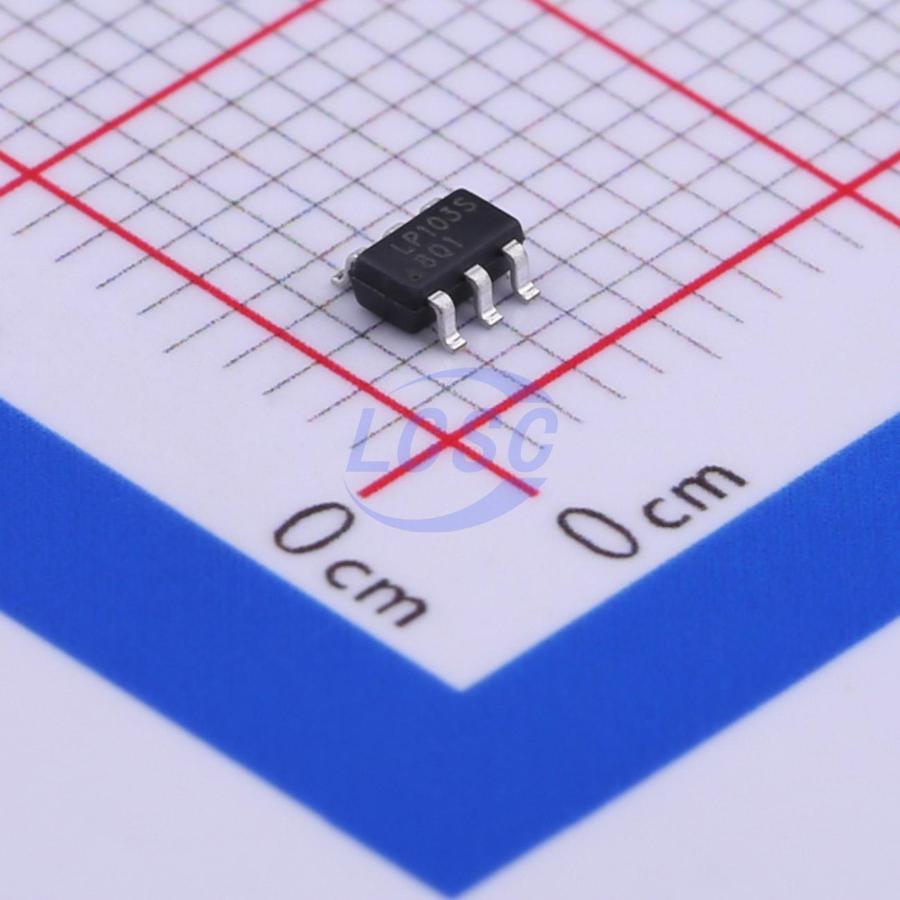

LP103SB6F
Power Supply Controller SOT-23-6 Power Management - Specialized
SOT-23-6RoHSActive
Fast Charging Interface Physical Layer IC
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP103SB6F
- Store part #
- C387729
- Package / case
- SOT-23-6
- Category
- Power Management - Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C387729
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.37 | ₹71.85 |
| 50+ | ₹11.44 | ₹572.00 |
| 150+ | ₹9.99 | ₹1,498.50 |
| 500+ | ₹8.89 | ₹4,445.00 |
| 3,000+ | ₹7.26 | ₹21,780.00 |
| 6,000+ | ₹6.81 | ₹40,860.00 |
5 × ₹14.37
₹71.85
excl. GST
₹84.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP103SB6F
₹71.85 for 5 + GST
Specifications
- Type
- Power Supply Controller
- Features
- Undervoltage Protection;Overvoltage protection;Under-voltage lockout;Short-Circuit Protection;Thermal Protection;Automatic protocol detection
- Protocol
- BC 1.2;SFCP;FCP;QC 2.0;QC 3.0
- Operating Temperature
- -40℃~+105℃
- Voltage - Supply
- 3.1V~6.3V
- Output Voltage
- 5V;9V;12V;20V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
The LP103S is a fast charge protocol controller. The feature monitors USB D+/D- data line's signal, and automatically adjusts output voltage of power source output to optimize charge time. The LP103S was supported USB Battery Charging Specification Revision 1.2(BC1.2), DCP apply the 2.7V operation function, Spreadtrum Fast Charge Protocol (SFCP), HiSilicon Fast Charge Protocol, Qualcomm Quick Charge 2.0/3.0 Class A and B. Other features include output over voltage protection, output under voltage protection, temperature sensor detector and under-voltage lockout (UVLO). The LP103S is available in a space saving SOP-8 and SOT23-6 package.
Applications
- Battery Charge Port
- USB Dedicated Charging Port
- Wall-Adapter
Key features
- Power consumption below 1mW@5 V
- Support USB BC1.2
- Supports USB DCP 2.7V
- Supports QC2.0 Class A and Class B
- Supports QC3.0 Class A and Class B
- Support HiSilicon FCP Protocol
- Support Spreadtrum SFCP Protocol
- Support Samsung Mode
- Under-Voltage Protection
- Output Over-Voltage Protection
- Output Short-Circuit Protection
- Remote Shutdown Protection
- Over-Temperature Protection
- UL Certification No. 4787974756
- Certificate of Spreadtrum
- Available in SOP-8 and SOT23-6
- RoHS Compliant and Halogen Free
