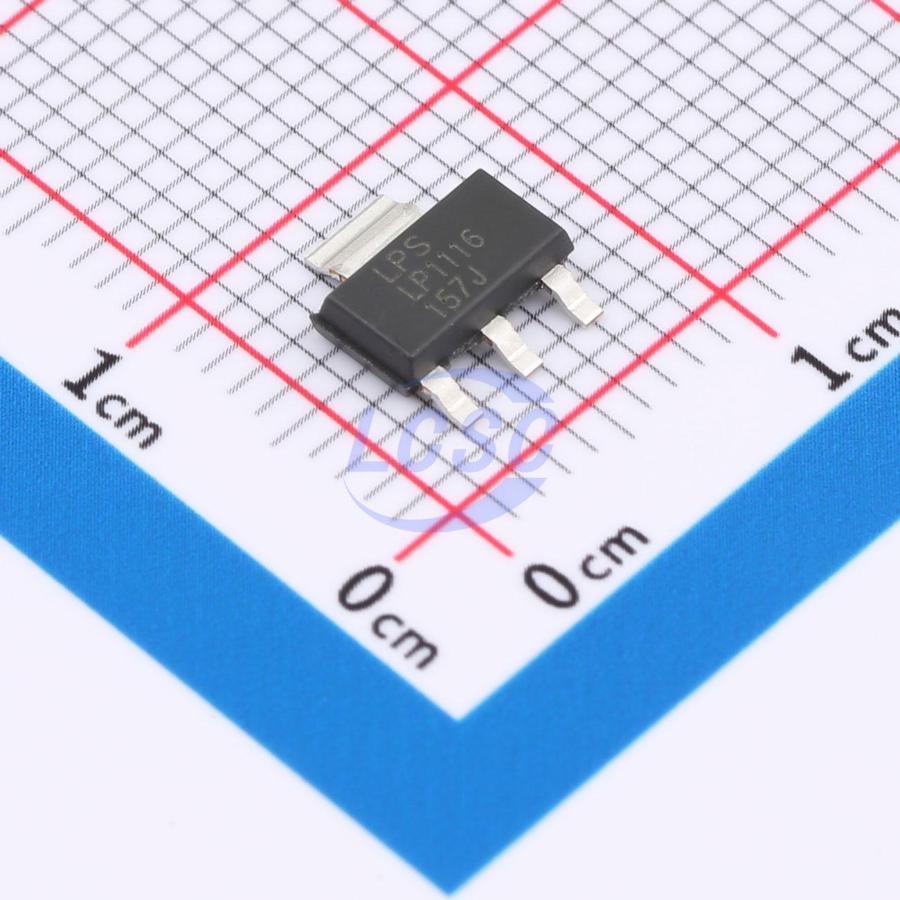

LOWPOWER

LP1116-15G3F

1.5V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-223-3RoHSActive

800mA, Ultra-low Noise LDO Regulator

Manufacturer: LOWPOWER
Manufacturer part #: LP1116-15G3F
Store part #: C2935094
Package / case: SOT-223-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,470 in stock

#C2935094

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
5+	₹17.52	₹87.60
50+	₹14.16	₹708.00
150+	₹12.49	₹1,873.50
500+	₹11.23	₹5,615.00
2,500+	₹8.72	₹21,800.00
5,000+	₹8.22	₹41,100.00

Quantity (min 5, multiples of 5)

5 × ₹17.52

₹87.60

excl. GST

₹103.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LP1116-15G3F

₹87.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 90uA
Output Configuration: Positive
Operating Voltage: 6.5V
Output Current: 800mA
Output Type: Fixed
Features: Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.23 g

Overview

The LP1116 is designed for portable applications with demanding performance and space requirements. The LP1116 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The LP1116 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. Available in the 3-lead of SOT-223 packages.
