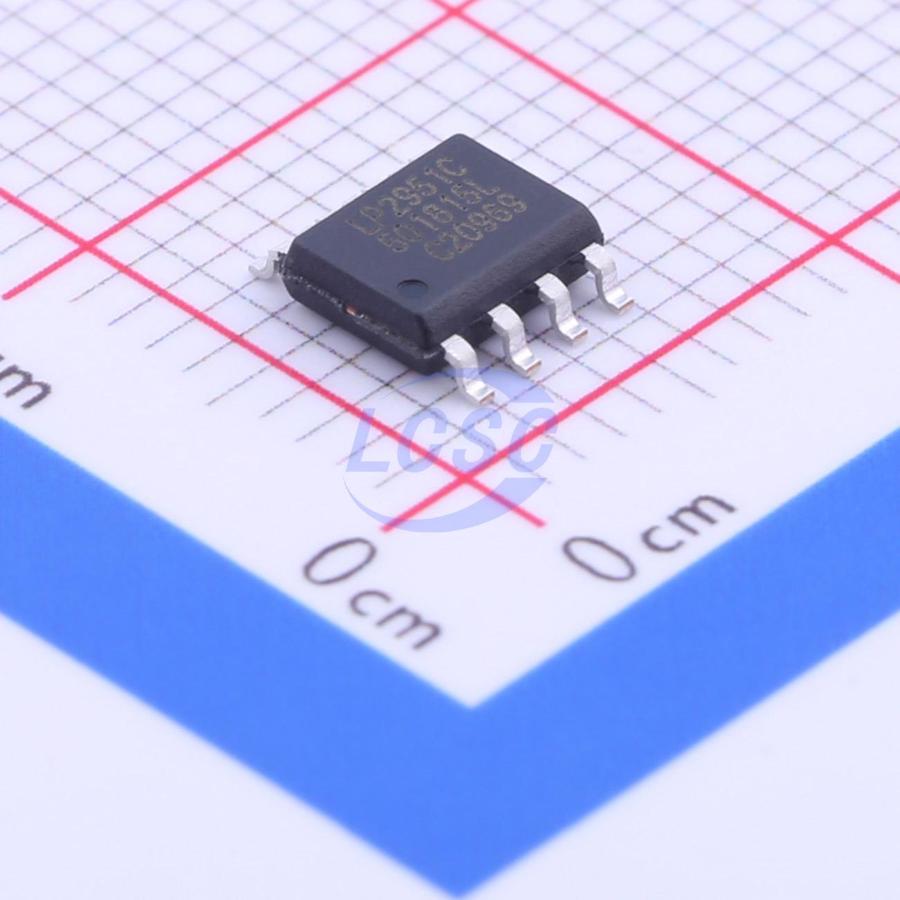

LP2951CS-L-5-0/TR

The LP2950 and LP2951 are low power voltage regulators. These devices are an excellent choice for use in battery-powered applications such as cordless telephones, radio control systems, and portable computers. The LP2950 and LP2951 feature low quiescent current and low dropout voltage (typ. 50mV at light load and 380 mV at 100mA). This includes a tight initial tolerance (0.5% typ.), extremely good load and line regulation (0.05% typ.), and very low output temperature coefficient (20 ppm/°C typ.), making the LP2950/LP2951 useful as a low-power voltage reference. The error flag output feature is used as a power-on reset for warning of a low output voltage, due to a falling input voltage. The logic-compatible shutdown feature enables the regulator to be switched ON and OFF. The LP2950 is offered in a 3-pin TO-92 package compatible with other 5V, 3.3V regulators. The LP2951 is available in an 8-lead SOIC package

Applications

• Battery Powered Systems
• Cordless Telephones
• Radio Control Systems
• Portable/Palm Top/Notebook Computers
• Portable Consumer Equipment
• Portable Instrumentation
• Avionics
• SMPS Post-Regulator
• Voltage Reference
• Automotive Electronics

Key features

• 5.0V and 3.3V Versions at 100mA Output
• Very Low Quiescent Current
• Low Dropout Voltage: 380mV at 100mA
• Extremely Tight Load and Line Regulation
• Very Low Temperature Coefficient
• Current & Thermal Limiting
• Need Only 1μF for Stability
• Offered in Lead Free, RoHS Compliant Packages: TO-92 (LP2950) & SOIC (LP2951)
• Direct Replacement For LP2950/LP2951
• Error Flag Warns of Output Dropout
• Logic-Controlled Electronic Shutdown
• Output Programmable From 1.24 to 29V
