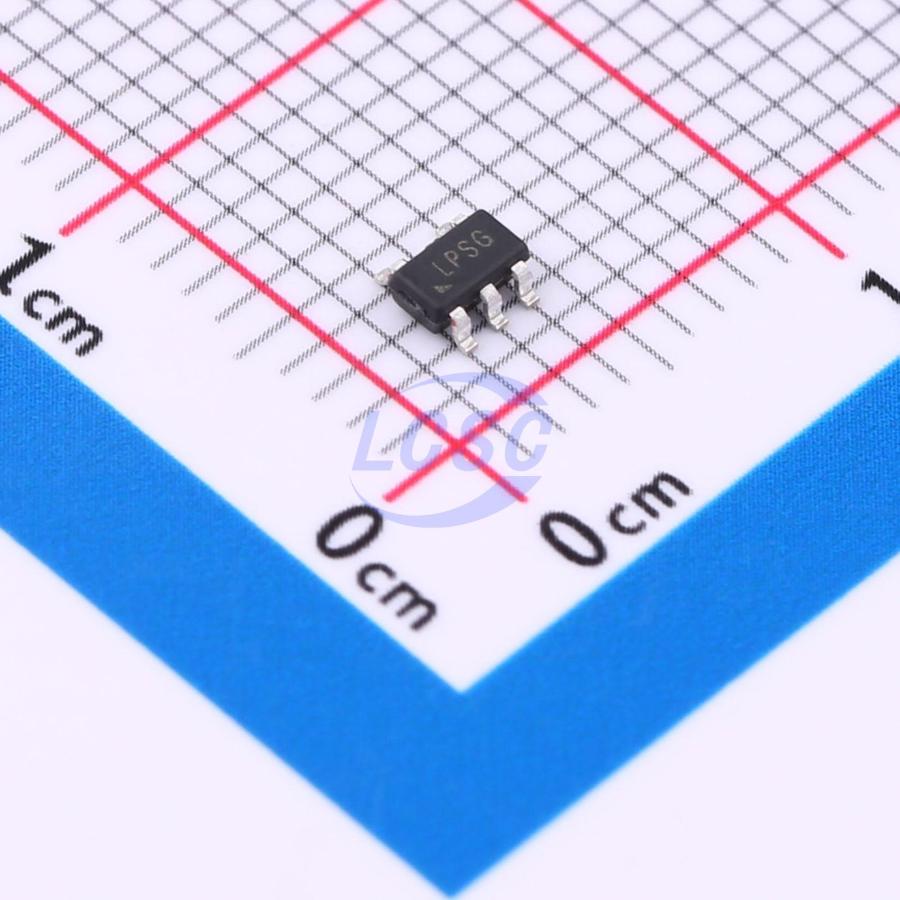

LP2985-50DBVR-TD
Linear Voltage Regulator IC Positive Fixed 150mA SOT-23-5
SOT-23-5ROHS CompliantActive
IC REG LINEAR 5V 150mA SOT-23-5
- Manufacturer
- TDSEMIC
- Manufacturer part #
- LP2985-50DBVR-TD
- Store part #
- C42422003
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,535 in stock
#C42422003
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.37 | ₹96.85 |
| 50+ | ₹15.32 | ₹766.00 |
| 150+ | ₹13.28 | ₹1,992.00 |
| 500+ | ₹11.76 | ₹5,880.00 |
| 3,000+ | ₹10.54 | ₹31,620.00 |
| 6,000+ | ₹9.94 | ₹59,640.00 |
5 × ₹19.37
₹96.85
excl. GST
₹114.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP2985-50DBVR-TD
₹96.85 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The LP2985 series is a set of low dropout (LDO) regulators featuring a wide input voltage range of 2.0V to 20V, low dropout voltage, low power consumption, and compact packaging, with an output voltage range of 1.8V to 5.0V. The LP2985 features an ultra-low quiescent current of as low as 2.0µA, and includes a CE enable control pin that allows the circuit to enter a sleep state. It is particularly suited for battery-powered and long standby-time system applications, helping to reduce system standby power consumption, effectively extending standby time and battery life.
Applications
- Handheld, battery-powered devices
- Communication equipment
- Audio/video equipment
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- In-vehicle navigation systems
- Industrial control
- Smart home
Key features
- Low input-output voltage dropout
- Low temperature drift coefficient
- Maximum operating voltage 20V
- Operating quiescent current 2.0μA, max 4μA
- Shutdown quiescent current max 0.5μA
- Output voltage accuracy: ±2%
- Output overload protection
- CE enable control port
- Operating temperature -20°C to +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MIC5205-5.0YM5-TD#C42422048TDSEMIC · SOT-23-5 | TDSEMIC | SOT-23-5 | 2,895 | ₹14.41 · 2,895 in stock | View |
 | SPX5205M5-L-5-0/TR-TD#C42422084TDSEMIC · SOT-23-5 | TDSEMIC | SOT-23-5 | 2,370 | ₹13.80 · 2,370 in stock | View |
 | MIC5219-5.0YM5-TD#C42422054TDSEMIC · SOT-23-5 | TDSEMIC | SOT-23-5 | 3,355 | ₹24.81 · 3,355 in stock | View |
 | AP2204K-5.0TRG1-TD#C42421818TDSEMIC · SOT-23-5 | TDSEMIC | SOT-23-5 | 260 | ₹18.92 · 260 in stock | View |
| TLV70450DBVR-TD#C42422108TDSEMIC · SOT-23-5 | TDSEMIC | SOT-23-5 | 3,000 | ₹13.60 · 3,000 in stock | View | |
