LOWPOWER

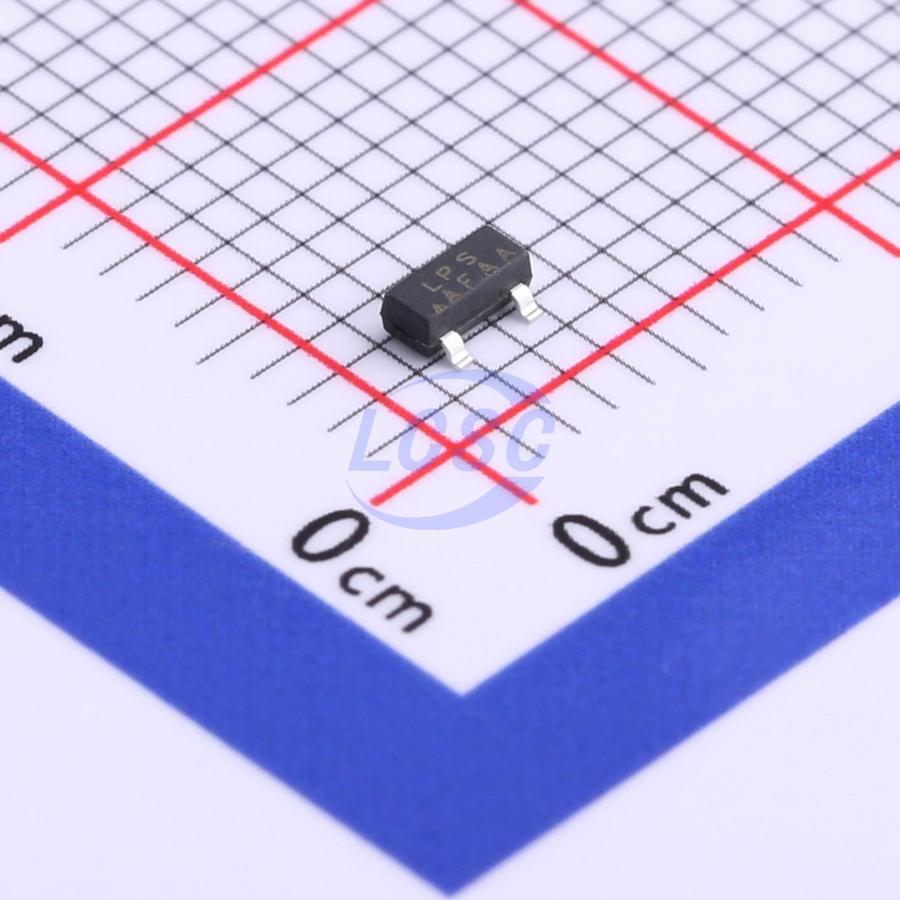

LP3809-263B3F

240ms 900mV~5.5V 1 SOT-23 Supervisors

SOT-23RoHSActive

Reset, Low Voltage Detector Built-in Delay 240mS

Manufacturer: LOWPOWER
Manufacturer part #: LP3809-263B3F
Store part #: C517190
Package / case: SOT-23
Category: Supervisors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,220 in stock

#C517190

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.33	₹73.30
100+	₹5.74	₹574.00
300+	₹4.95	₹1,485.00
3,000+	₹4.35	₹13,050.00
6,000+	₹3.88	₹23,280.00
9,000+	₹3.64	₹32,760.00

Quantity (min 10, multiples of 10)

10 × ₹7.33

₹73.30

excl. GST

₹86.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP3809-263B3F

₹73.30 for 10 + GST

Specifications

Operating Temperature: -40℃~+85℃
Reset Timeout: 240ms
standby current: 4uA
Voltage - Supply: 900mV~5.5V
ChipType: Voltage Detector
Threshold Voltage: 2.63V
Number of Voltages Monitored: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

LP3809 is a series of high precision voltage detector with ultra low current consumption. It can work at very low voltage, which makes it perfect for system reset. LP3809 is composed of high precision voltage reference, comparator, delay circuit, output driver and resistor array. Internally preset detect voltage has a low temperature drift and requires no external trimming. LP3809 is available in SOT-23-3 packages which are Pb free.
