LOWPOWERDatasheet (PDF)

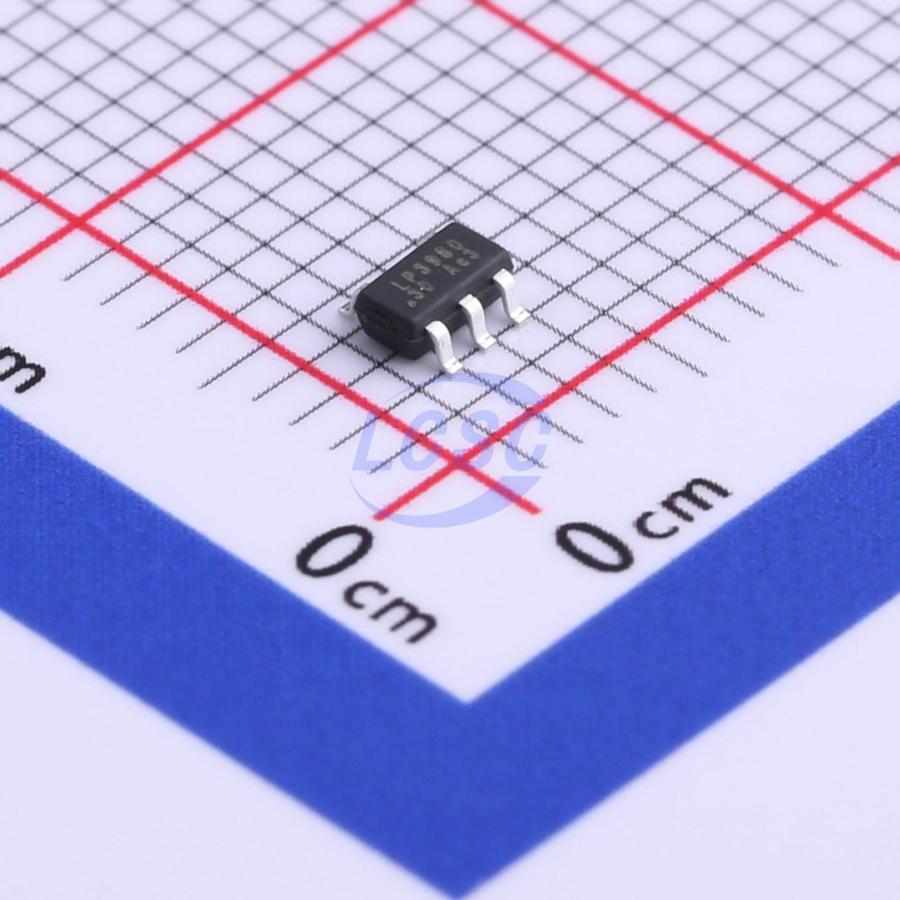

LP3980-30B5F
Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Ultra-low noise, Small Package Ultra-Fast CMOS LDO Regulator
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3980-30B5F
- Store part #
- C517194
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,710 in stock
#C517194
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.23 | ₹82.30 |
| 100+ | ₹6.50 | ₹650.00 |
| 300+ | ₹5.64 | ₹1,692.00 |
| 3,000+ | ₹5.00 | ₹15,000.00 |
| 6,000+ | ₹4.48 | ₹26,880.00 |
| 9,000+ | ₹4.22 | ₹37,980.00 |
10 × ₹8.23
₹82.30
excl. GST
₹97.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3980-30B5F
₹82.30 for 10 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
The LP3980 is designed for portable RF and wireless applications where performance and space are at a premium. Its performance is optimized for battery-powered systems, delivering ultralow noise and low quiescent current. In dropout, the regulator's ground current increases only slightly, further extending battery life. The LP3980 also works with low-ESR ceramic capacitors, reducing board space required for power supply applications — a critical advantage in handheld wireless devices. In shutdown mode, current consumption is less than 0.01μA, with a fast startup time of less than 50μs. Additional features include ultralow dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- Portable media players/MP3 players
- Cellular phones and smartphones
- LCD monitors
- Digital camera sensors
- Wireless network adapters
Key features
- 1.6V to 5.5V input voltage range
- Low dropout: 240mV at 300mA, 3.3V output
- 300mA output current
- High PSRR: -76dB at 1KHz
- Standby current <1μA in shutdown
- Ultra-fast line/load transient response
- Current limiting protection
- Thermal shutdown protection
- Available in SOT23-5, SOT23, TDFN-4 packages
