LOWPOWERDatasheet (PDF)

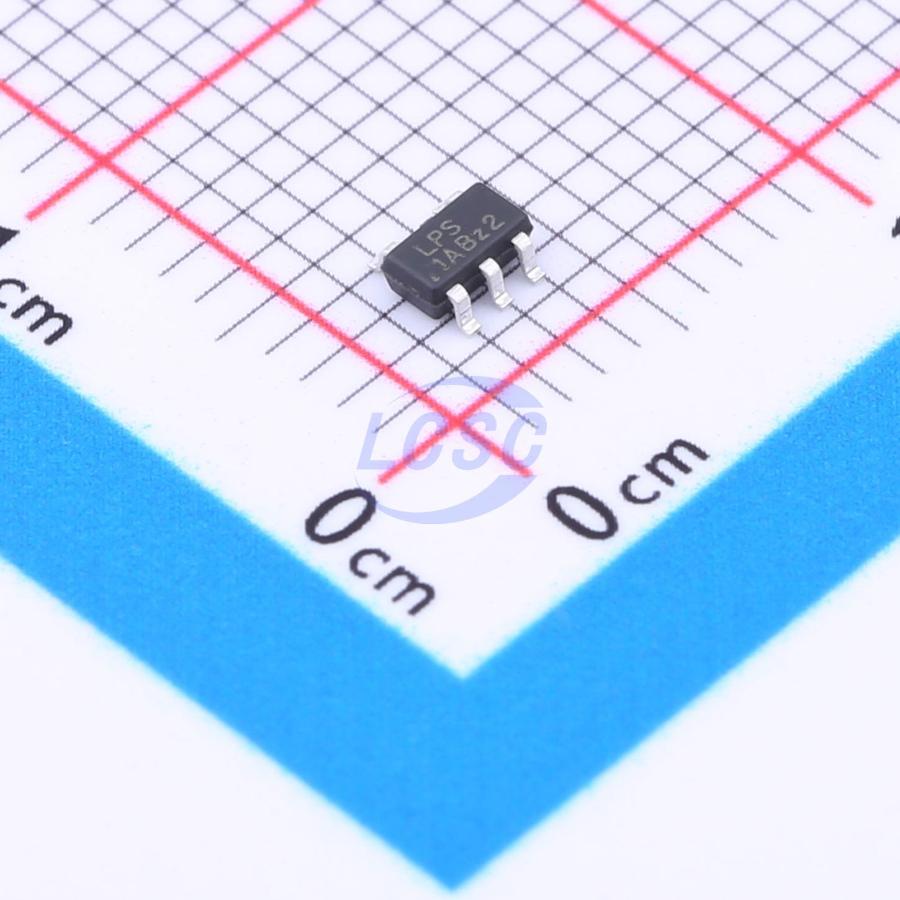

LP3981AB5F
Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA Output, Low noise, Low-Dropout CMos Linear Regulator
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3981AB5F
- Store part #
- C2890366
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,245 in stock
#C2890366
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.18 | ₹55.90 |
| 50+ | ₹8.92 | ₹446.00 |
| 150+ | ₹7.78 | ₹1,167.00 |
| 500+ | ₹6.93 | ₹3,465.00 |
| 3,000+ | ₹6.26 | ₹18,780.00 |
| 6,000+ | ₹5.91 | ₹35,460.00 |
5 × ₹11.18
₹55.90
excl. GST
₹65.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3981AB5F
₹55.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(Ta)
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Built-in soft-start;Operating status indication;Input under-voltage protection;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The LP3981 series low-dropout, low-power regulators offer a fast start-up and excellent line and load transient responses. A low ground current while at no load with chips enabled makes the devices attractive for battery-operate power systems. The LP3981 series also provides an active pull-down circuit to quickly discharge output load. Other features include short current limit, thermal protection and a low current consume shut-down mode. The LP3981 is available in SOT23-5 / SOT23 / DFN-4 (1mm*1mm) / DFN-6 (2mm*2mm) packages.
Applications
- Portable Media Players/MP3 players
- Cellular and Smart mobile phone
- LCD
- DSC
- Sensor
- Wireless Card
Key features
- 2.5 - 5.5V Input Voltage Range
- Low Dropout: 260mV @ 300mA Output Current, 500mA Peak Current
- High PSRR: -63dB at 1KHz
- <0.1uA Standby Current In Shutdown Mode
- TTL-Logic-Controlled Shutdown Input
- Ultra-Fast Response in Line/Load transient
- Current Limit and Thermal Shutdown Protection
