LOWPOWERDatasheet (PDF)

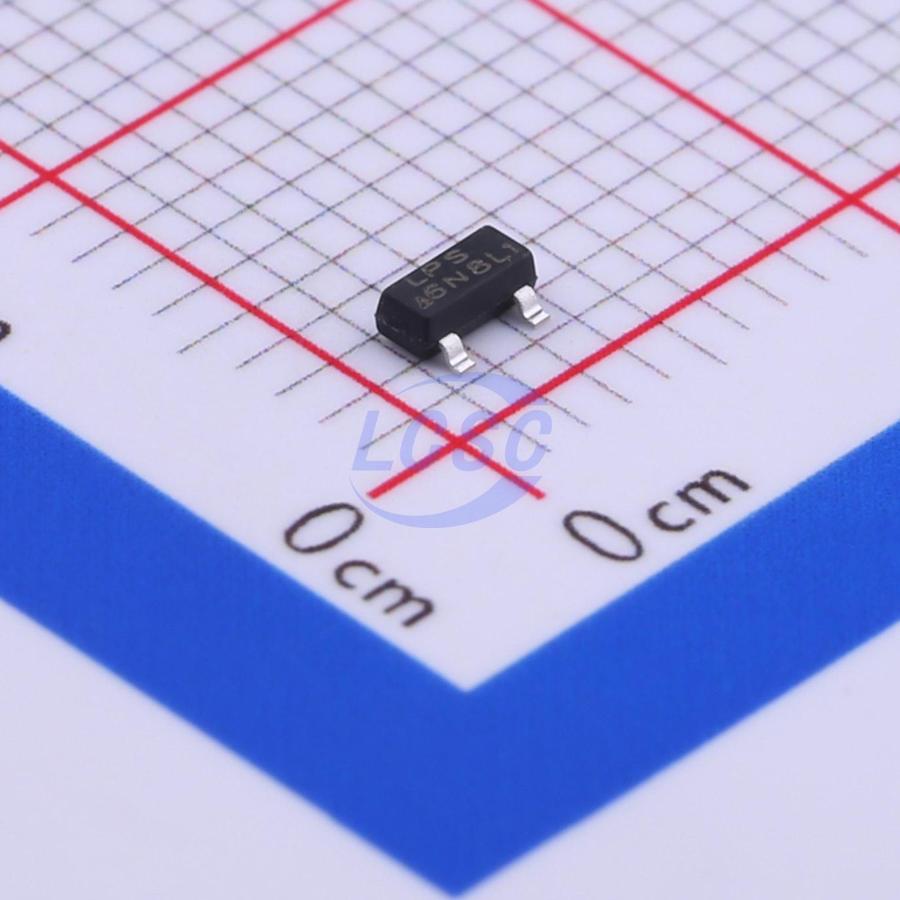

LP3986-15B3F
1.5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3986-15B3F
- Store part #
- C387694
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,600 in stock
#C387694
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.12 | ₹18,720.00 |
| 9,000+ | ₹2.94 | ₹26,460.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3986-15B3F
₹58.50 for 10 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 75uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
The LP3986 is designed for portable applications with demanding performance and space requirements. The LP3986 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The LP3986 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. Available in the 3-lead of SOT-23 packages
Applications
- PMP/PDA/MP3 players
- Cellular and Mobile phone
- RF Module
- Sensor Module
Key features
- Ultra-Low-Noise for RF Application
- 2.5V - 6V Input Voltage Range
- Low Dropout: 220mV @ 300mA
- Ultra-Fast Response in Line/Load Transient
- Current Limiting and Thermal Shutdown Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3985-15B3F#C517180LOWPOWER · SOT-23-3 | LOWPOWER | SOT-23-3 | On request | Price on request | Quote |
