LOWPOWERDatasheet (PDF)

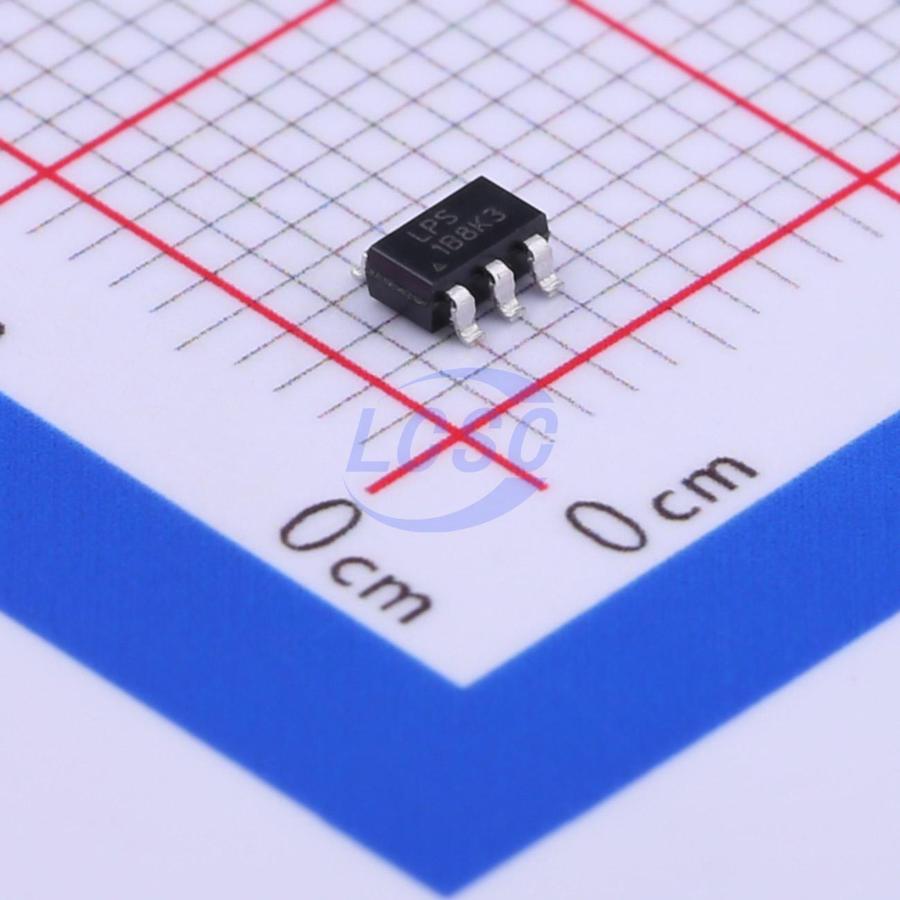

LP3992-12B5F
1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA, Ultra-low noise, Small Package Ultra-Fast CMOS LDO Regulator
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3992-12B5F
- Store part #
- C387687
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C387687
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.29 | ₹105.80 |
| 200+ | ₹4.25 | ₹850.00 |
| 600+ | ₹3.73 | ₹2,238.00 |
| 3,000+ | ₹3.35 | ₹10,050.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
| 21,000+ | ₹2.88 | ₹60,480.00 |
20 × ₹5.29
₹105.80
excl. GST
₹124.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3992-12B5F
₹105.80 for 20 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 5.5V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.024 g
Overview
The LP3992 is designed for portable RF and wireless applications with demanding performance and space requirements. The LP3992 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. The LP3992 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The LP3992 consumes less than 0.01 μA in shutdown mode and has fast turn-on time less than 50 μs. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. It is available in the 5-lead of SOT23-5 and TSOT23-5 packages.
Applications
- Portable Media Players/MP3 players
- Cellular and Smart mobile phone
- LCD
- DSC
- Sensor
- Wireless Card
Key features
- Ultra-Low-Noise for RF Application
- 2.5V - 5.5V Input Voltage Range
- Low Dropout: 220mV @ 300mA
- 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V and 5V Fixed
- 300mA Output Current
- High PSSR: -76dB at 1KHz
- <0.01μA Standby Current When Shutdown
- Available in SOT23-5 and TSOT23-5 Package
- TTL-Logic-Controlled Shutdown Input
- Ultra-Fast Response in Line/Load transient
- Current Limiting and Thermal Shutdown Protection
- Quick start-up (typically 50μS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3981-12B5F#C517236LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 2,655 | ₹5.74 · 2,655 in stock | View |
 | LP3984-12B5F#C517241LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 4,940 | ₹5.23 · 4,940 in stock | View |
| LP3980H-12B5F#C517227LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | On request | ₹15.32 · 0 in stock | View | |
