LOWPOWERDatasheet (PDF)

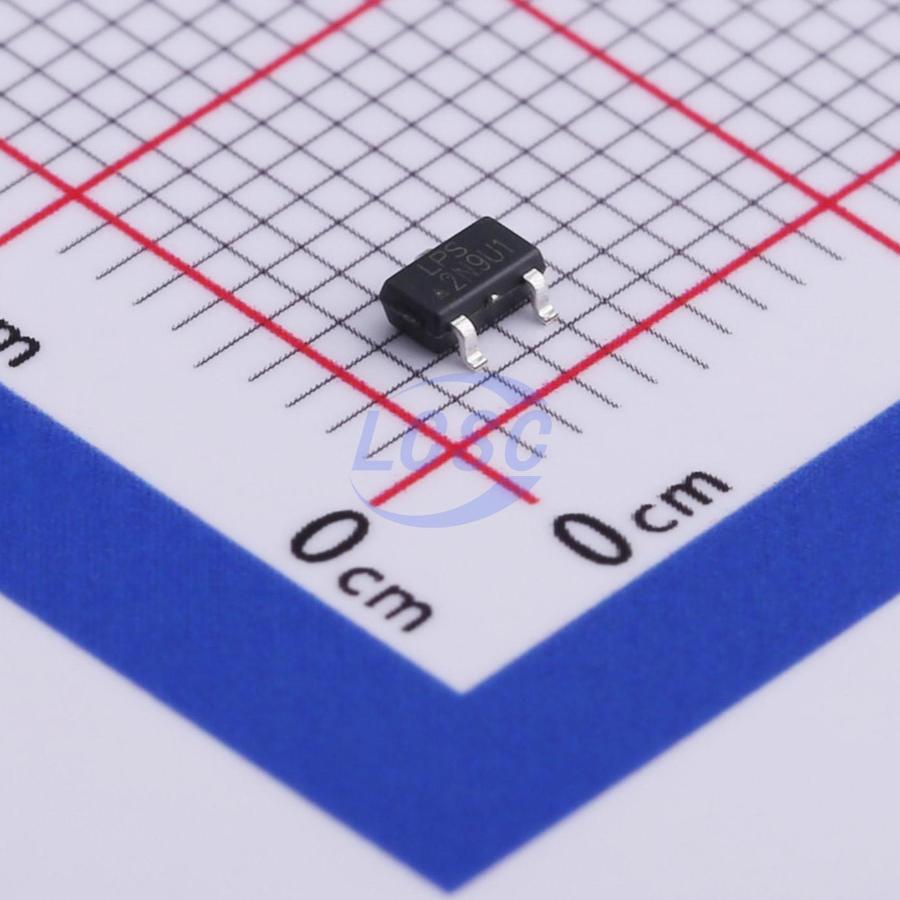

LP3993-30B3F
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
200mA, Ultra-low Noise LDO Regulator
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3993-30B3F
- Store part #
- C517201
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C517201
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.99 | ₹59.95 |
| 50+ | ₹9.59 | ₹479.50 |
| 150+ | ₹8.40 | ₹1,260.00 |
| 500+ | ₹7.50 | ₹3,750.00 |
| 3,000+ | ₹6.79 | ₹20,370.00 |
| 6,000+ | ₹6.43 | ₹38,580.00 |
5 × ₹11.99
₹59.95
excl. GST
₹70.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3993-30B3F
₹59.95 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 24V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The LP3993 is designed for portable applications with demanding performance and space requirements. The LP3993 performance is optimized for high voltage systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the input system life. The LP3993 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- PMP/PDA/MP3 players
- Cellular and Mobile phone
- RF Module
- Sensor Module
Key features
- Ultra-Low-Noise for RF Application
- Input Voltage up to 24V
- Low Dropout: 300mV @ 100mA
- Output Current 200mA
- Ultra-Fast Response in Line/Load Transient
- Current Limiting and Thermal Shutdown Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3995A-30B3F#C517159LOWPOWER · SOT-23-3 | LOWPOWER | SOT-23-3 | On request | Price on request | Quote |
