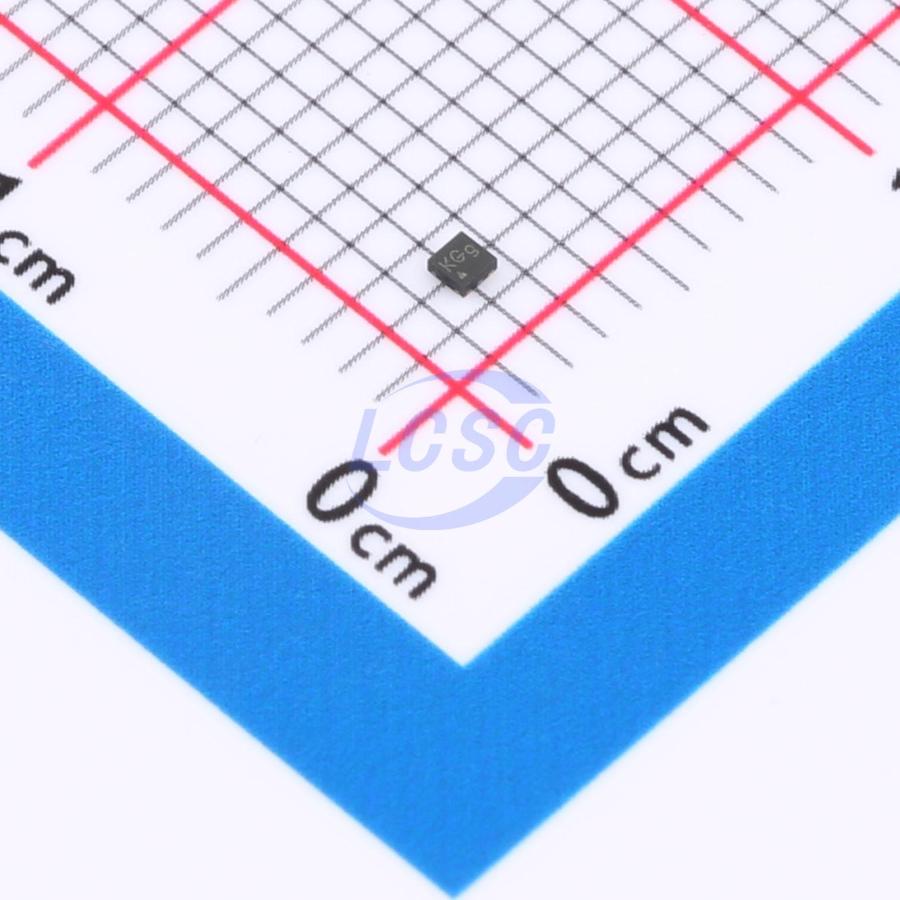

LP3997-30QVF

The LP3997 series are high-performance, low dropout (LDO) linear regulators featuring ultra-low quiescent current, high power supply rejection ratio (PSRR), fast transient response, and high accuracy. Fabricated on an advanced CMOS process, these devices are suitable for a wide range of regulated power supply applications requiring up to 300mA of load current. The LP3997 series offers standard fixed output voltages of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, and 3.3V. The device remains stable with 1.0μF to 10μF ceramic output capacitors, and provides short-circuit protection via current limiting and overtemperature protection via thermal overload protection. The device is available in standard SOT23, DFN-4 (1mm×1mm), and SOT23-5 packages.

Applications

• Wearable devices
• Digital cameras
• Audio equipment
• Portable and battery-powered devices
• Post DC-DC conversion regulation
• Post-stage regulation
• Wireless handheld devices

Key features

• Wide input voltage range: 1.6V ~ 6.0V
• Fixed output voltage: 1.2V to 5V
• Maximum load current up to 300mA
• High PSRR: 65dB @ 1kHz
• Ultra-low quiescent current: 2μA
• Low noise: 60μV(RMS) typical
• Low dropout voltage:
• 60mV @ 100mA load, VOUT=3.3V
• 180mV @ 300mA load, VOUT=3.3V
• 100mV @ 100mA load, VOUT=1.8V
• 305mV @ 300mA load, VOUT=1.8V
• Output voltage accuracy: ±1.5% @ 1mA typical
• Thermal shutdown protection
• Excellent load/line transient response
• Line regulation: 0.02%/V typical
• Load regulation: 20mV typical
• Robust ESD capability:
• HBM: 4kV
• CDM: 1kV
• Package: SOT23-5, DFN1x1-4, SOT23
• RoHS compliant and 100% Pb-free
