LOWPOWERDatasheet (PDF)

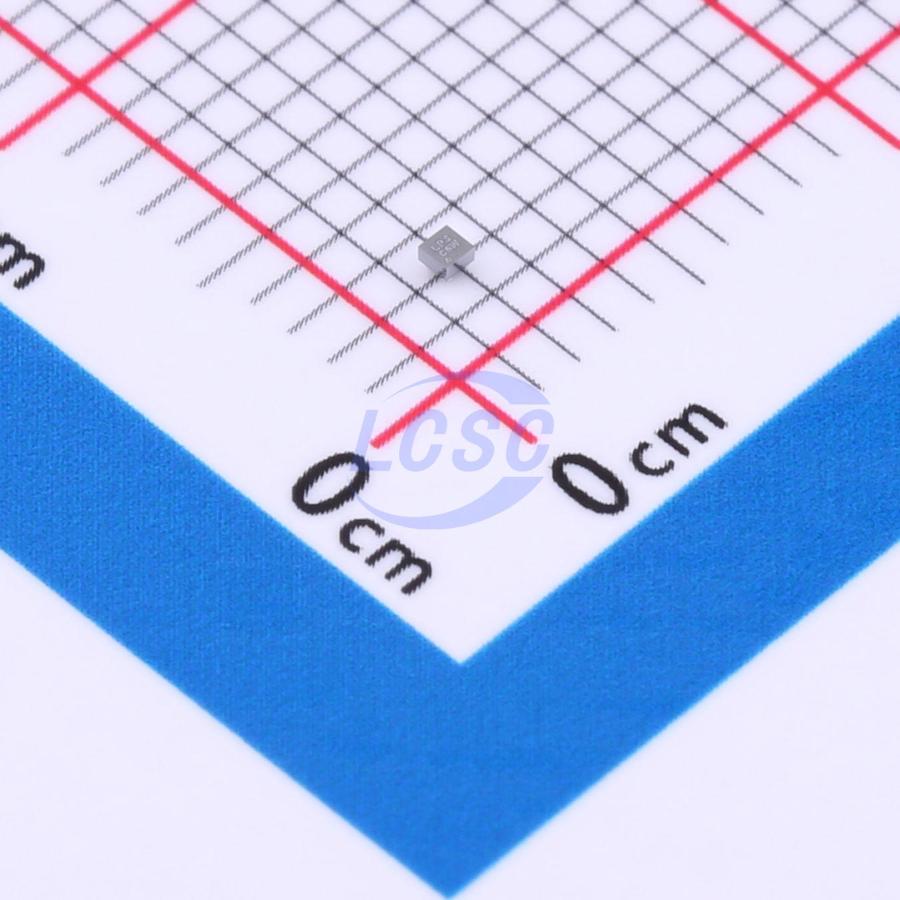

LP5240HVF
1 1.5A Active High Load Switch WLCSP-4 Power Distribution Switches, Load Drivers
WLCSP-4RoHSActive
Low-Rdson Load Switch in Ultra-Small Package
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP5240HVF
- Store part #
- C2890373
- Package / case
- WLCSP-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C2890373
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.03 | ₹75.15 |
| 50+ | ₹11.91 | ₹595.50 |
| 150+ | ₹10.35 | ₹1,552.50 |
| 500+ | ₹9.17 | ₹4,585.00 |
| 3,000+ | ₹8.16 | ₹24,480.00 |
| 6,000+ | ₹7.69 | ₹46,140.00 |
5 × ₹15.03
₹75.15
excl. GST
₹88.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP5240HVF
₹75.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Output discharge function;Soft-start
- number of channels
- 1
- Maximum Continuous Current
- 1.5A
- Control Input Logic
- Active High
- RDS(on)
- 50mΩ
- Operating Voltage
- 1.2V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The LP5240 is an advanced load switch in an ultrasmall package. The internal P-type MOSFET and the slew rate control make it easy to use. An output discharge path is integrated to the external components and simplify the design. Thanks to the current optimization, LP5240 is suitable for ultra-low current consumption application to save energy. It operates over a wide input voltage range from 1.2V to 5.5V. The device contains a soft-start function to reduce the input inrush current when it is turned on. The LP5240 is available in a 4-pin WLCSP4 package with 0.4mm pin pitch.
Applications
- Mobile Phones
- Tablets
- Digital Cameras GPS
- Portable Devices
Key features
- 1.2V~5.5V Operating Voltage Range
- Ultra-low On-Resistance: RDS(ON)=50mΩ at VIN=5.5V, RDS(ON)=67mΩ at VIN=3.3V, RDS(ON)=110mΩ at VIN=1.8V, RDS(ON)=230mΩ at VIN=1.2V
- Continuous Output Current up to 1.5A
- Output Auto−Discharge
- Active High Enable Control
- WLCSP4, 0.76mm×0.76mm with 0.4mm Pitch
