LOWPOWERDatasheet (PDF)

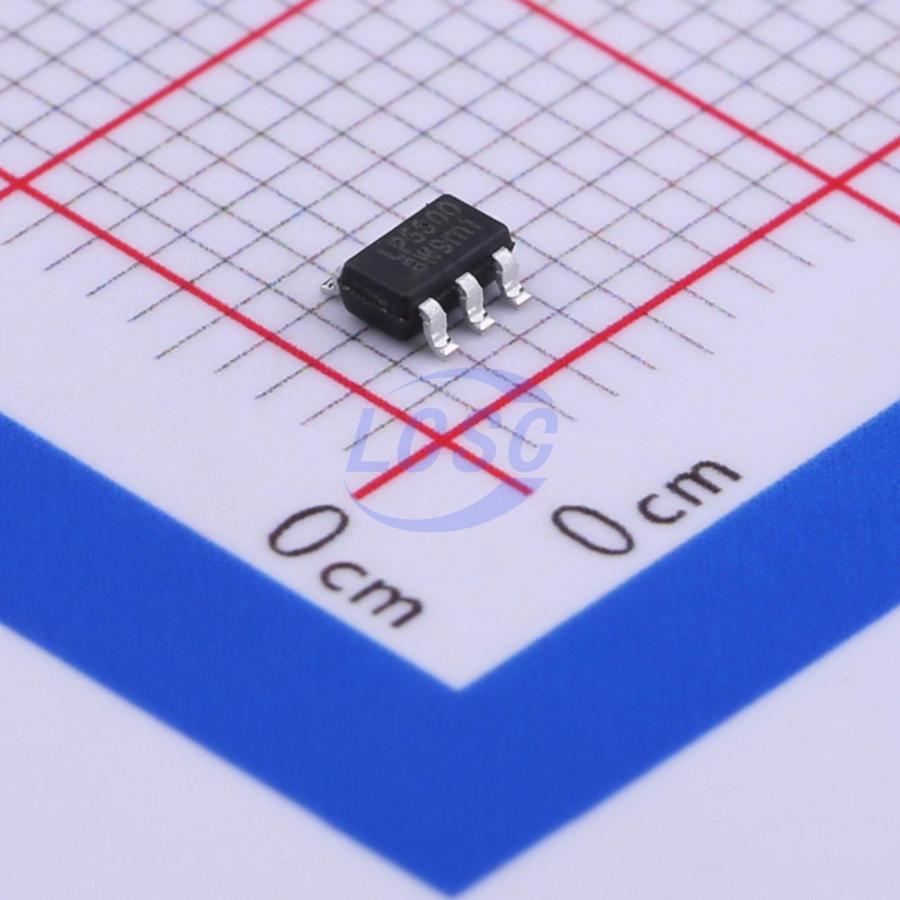

LP5300B6F
9ms 3V~36V 1 SOT-23-6 Supervisors
SOT-23-6RoHSActive
Over Voltage and Over Current Protection IC
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP5300B6F
- Store part #
- C387703
- Package / case
- SOT-23-6
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38,445 in stock
#C387703
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.78 | ₹88.90 |
| 50+ | ₹14.14 | ₹707.00 |
| 150+ | ₹12.32 | ₹1,848.00 |
| 500+ | ₹10.94 | ₹5,470.00 |
| 3,000+ | ₹9.78 | ₹29,340.00 |
| 6,000+ | ₹9.22 | ₹55,320.00 |
5 × ₹17.78
₹88.90
excl. GST
₹104.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP5300B6F
₹88.90 for 5 + GST
Specifications
- Reset Timeout
- 9ms
- Operating Temperature
- -40℃~+85℃
- standby current
- 80uA
- Voltage - Supply
- 3V~36V
- ChipType
- Voltage monitor
- Threshold Voltage
- 6.1V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The LP5300 is an Over-Voltage-Protection (OVP) and Over-Current-Protection (OCP) device. The device will switch off internal MOSFET to disconnect VIN to VOUT to protect load when any of input voltage, input current over the threshold. The Over temperature protection (OTP) function monitors chip temperature to protect the device. The LP5300 is available in SOT-23-6L and SOT89 package. Standard products are Pb-free and Halogen-free.
Applications
- GPS
- PMP
- PAD
- MID
- Digital cameras
- Digital Videos
Key features
- Input Voltage Range: 3V to 36V
- Typical Output Power on Time: 9ms
- OVP Threshold: 6.1V
- OVP Threshold Time Less Than 1μs
- Over Current Protection: 2.1A(MIN)
- Low RDS(ON) Internal Switches:130mΩ @ 5V /1A
- Output Discharge
- Thermal Fault Protection
- SOT23-6/SOT89 Package
- RoHS Compliant and 100% Lead (Pb) -Free
