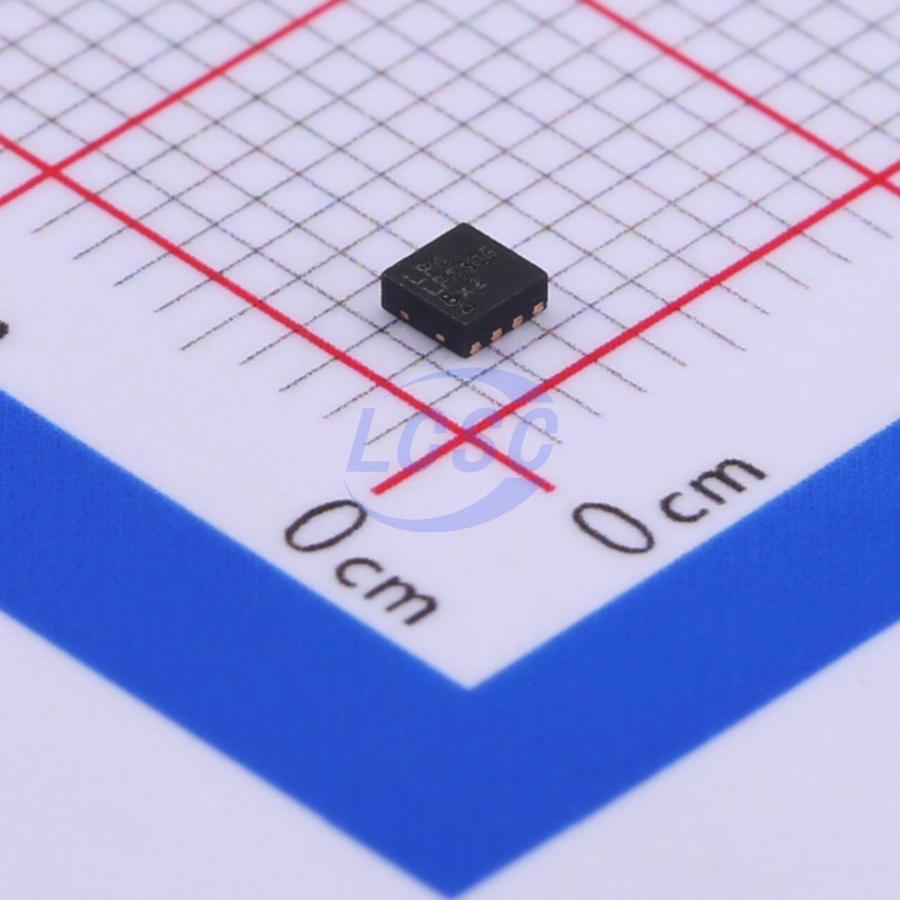

LP5305QVF
3.3V~5V 3 DFN-8-EP(2x2) Supervisors
Over Voltage and Over Current Protection IC
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP5305QVF
- Store part #
- C387701
- Package / case
- DFN-8-EP(2x2)
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,895 in stock
#C387701
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.64 | ₹143.20 |
| 50+ | ₹22.90 | ₹1,145.00 |
| 150+ | ₹20.44 | ₹3,066.00 |
| 500+ | ₹17.36 | ₹8,680.00 |
| 2,500+ | ₹16.00 | ₹40,000.00 |
| 4,000+ | ₹15.17 | ₹60,680.00 |
5 × ₹28.64
₹143.20
excl. GST
₹168.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LP5305QVF
₹143.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- standby current
- 400uA
- Voltage - Supply
- 3.3V~5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 5.85V
- Number of Voltages Monitored
- 3
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The LP5305 is a highly integrated circuits, it used to protect low voltage system from abnormal high input voltage. The IC continuously check the input voltage, the input current, and the battery voltage. When the protection status is occur, the power MOS will turn off at the same time. The LP5305 is safety devices to ensure worked against accidents. In case of the input voltage exceeds a OVP threshold voltage level, the power MOS will turn off within 1μs. The current limit can is adjustable by external resistor between ISET and GND. And the current is also limited to prevent charging the battery with an excessive current. The LP5305 also monitors the Li-ion battery voltage, when the battery voltage exceeds 4.35V, the IC will turn off the MOS. Other features include over temperature protection and under-voltage lockout (UVLO). The LP5305 is available in a space saving DFN-8 package.
Applications
- Cell Phones
- Digital Cameras
- Portable Instruments
Key features
- Withstand High Input Voltage Up to 26V
- Adjustable Over Current Protection
- Input Over Voltage Protection
- Battery Over Voltage Protection
- High Accuracy Protection Thresholds
- Fault Signal Output
- Enable Control
- Under Voltage Lockout
- Output Short-Circuit Protection
- Over-Temperature Protection
- Available in DFN-8
- RoHS Compliant and Halogen Free
