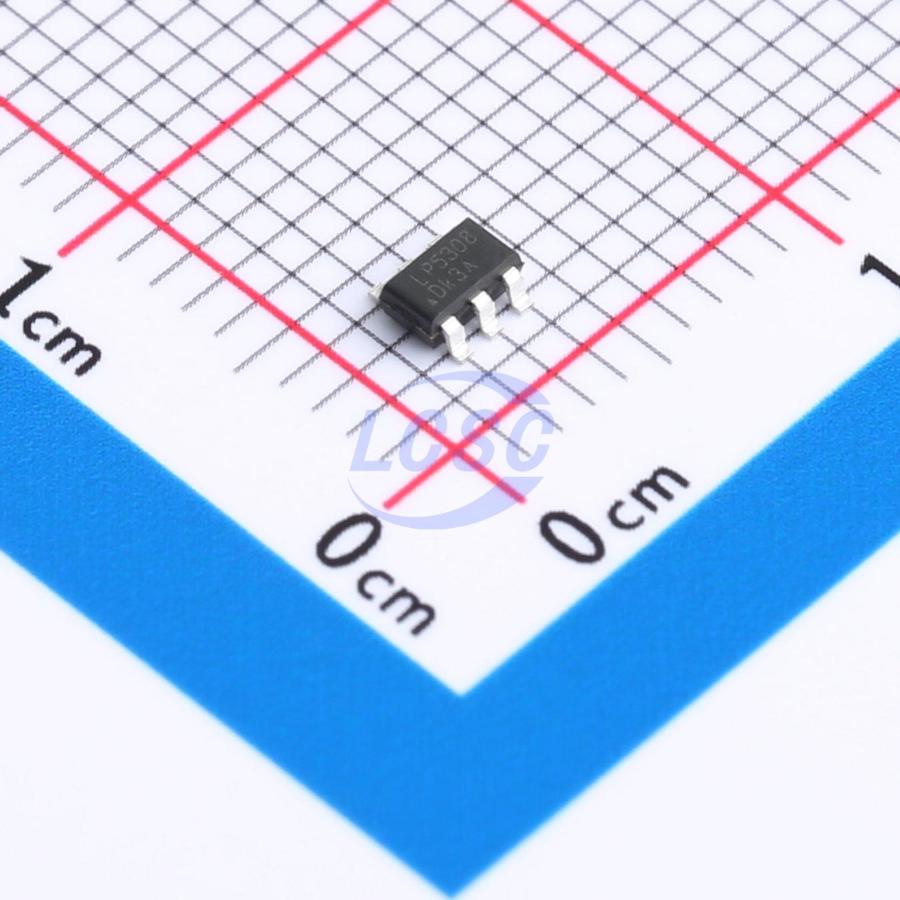

LOWPOWER

LP5308B6F

1 Active Low High Side Switch SOT-23-6 Power Distribution Switches, Load Drivers

SOT-23-6RoHSActive

36V Over-Voltage Protection Switch with Programmable Over-Current Protection

Manufacturer: LOWPOWER
Manufacturer part #: LP5308B6F
Store part #: C5139783
Package / case: SOT-23-6
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

29,840 in stock

#C5139783

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.40	₹62.00
50+	₹9.81	₹490.50
150+	₹8.51	₹1,276.50
500+	₹7.55	₹3,775.00
3,000+	₹6.78	₹20,340.00
6,000+	₹6.38	₹38,280.00

Quantity (min 5, multiples of 5)

5 × ₹12.40

₹62.00

excl. GST

₹73.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP5308B6F

₹62.00 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Output discharge function
number of channels: 1
Control Input Logic: Active Low
RDS(on): 135mΩ
Operating Voltage: 3V~36V
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.039 g

Overview

LP5308 is a power switch device that provides comprehensive protection for systems and loads subject to high-current and input overvoltage conditions. The device integrates a 135mΩ MOSFET and operates over an input voltage range of 3.0V to 36V. When the voltage on VIN exceeds the overvoltage threshold, overvoltage protection disconnects VIN from VOUT. Overcurrent protection can be set via an external resistor. When the current reaches the threshold, the device turns off the power FET to prevent damage from excessive current. The switch is controlled by an active-low logic pin. Integrated thermal shutdown protection turns off the switch when the temperature exceeds the threshold to prevent component damage. These devices are available in space-saving SOT23-6 and DFN-8 packages.
