LOWPOWERDatasheet (PDF)

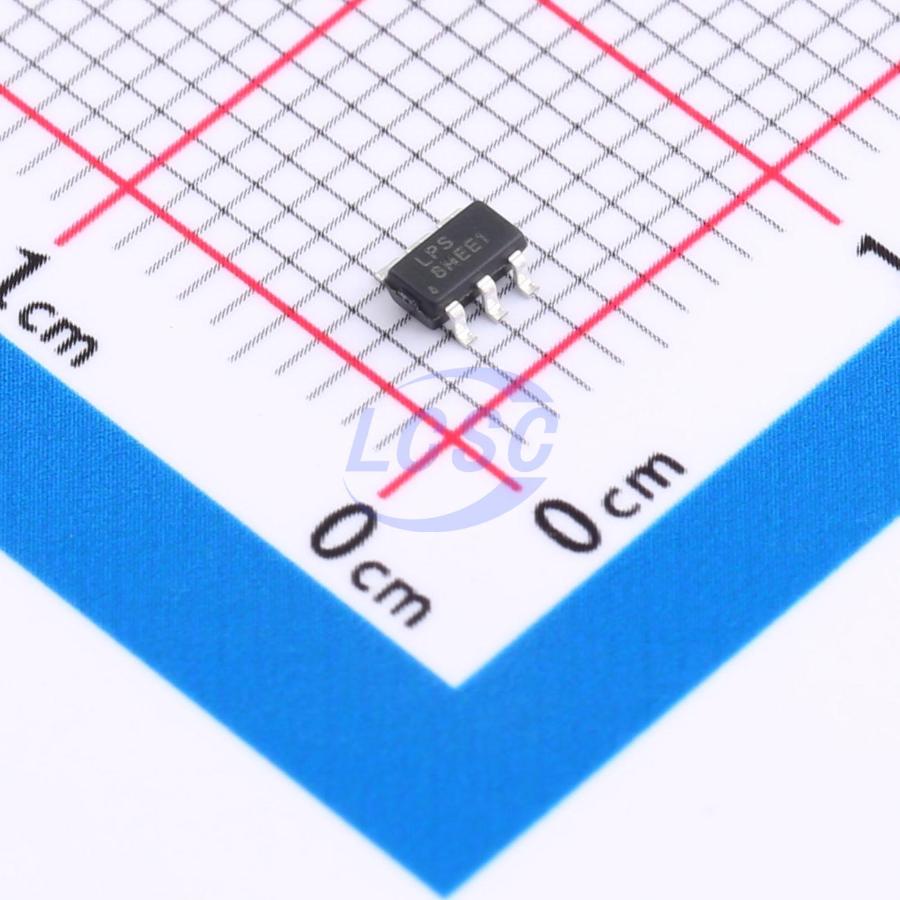

LP5312B6F
1.5A SOT-23-6
SOT-23-6RoHSActive
36V Over-Voltage Protection Switch with Fixed Over-Current Protection
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP5312B6F
- Store part #
- C47345743
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,290 in stock
#C47345743
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.80 | ₹79.00 |
| 50+ | ₹12.45 | ₹622.50 |
| 150+ | ₹10.78 | ₹1,617.00 |
| 500+ | ₹9.53 | ₹4,765.00 |
| 3,000+ | ₹8.52 | ₹25,560.00 |
| 6,000+ | ₹8.03 | ₹48,180.00 |
5 × ₹15.80
₹79.00
excl. GST
₹93.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP5312B6F
₹79.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 1.5A
- RDS(on)
- 270mΩ
- Operating Voltage
- 3V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
LP5312 is a power switch device that provides multiple protections for systems and loads subject to high-current and input overvoltage conditions. The device integrates a 270mΩ MOSFET and operates over an input voltage range of 3.0V to 36V. When the voltage on VIN exceeds the overvoltage threshold, the overvoltage protection function disconnects VIN from VOUT. When the current reaches the threshold, the device turns off the power FET to prevent damage from excessive current. The device integrates thermal shutdown protection, which turns off the MOSFET when the temperature exceeds the threshold to prevent device damage. The device is available in space-saving SOT23-6 and DFN-8 packages.
Applications
- E-cigarette devices
- Wearable devices
Key features
- Input voltage withstand capability up to 36V
- On-resistance: 270mΩ
- Low quiescent current: 65μA
- Under-voltage lockout: 2.95V
- Overvoltage protection: 6.05V
- Integrated output discharge function
- Output short-circuit protection
- Thermal shutdown protection
- ESD protection: HBM 8kV, CDM 2kV
- Packages: SOT23-6 and DFN-8
