Tokmas

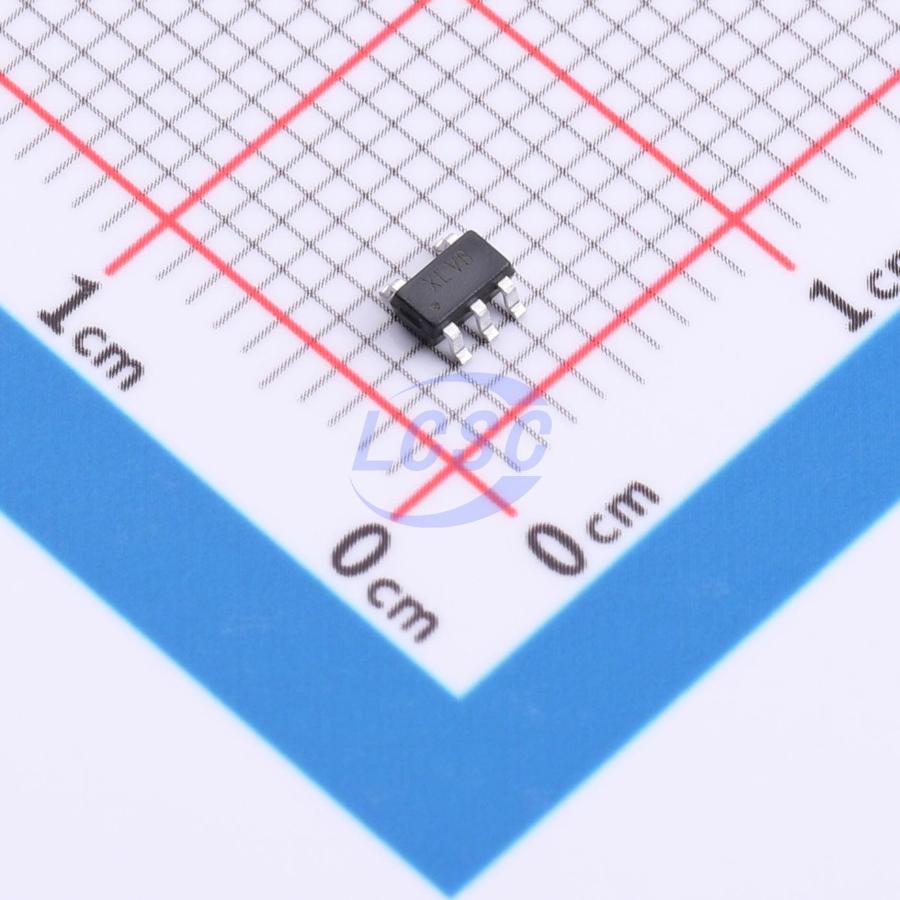

LP5907MFX-3.3(TOKMAS)

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

Manufacturer: Tokmas
Manufacturer part #: LP5907MFX-3.3(TOKMAS)
Store part #: C53133663
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,070 in stock

#C53133663

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹10.54	₹52.70
50+	₹8.37	₹418.50
150+	₹7.29	₹1,093.50
500+	₹6.48	₹3,240.00
3,000+	₹5.83	₹17,490.00
6,000+	₹5.50	₹33,000.00

Quantity (min 5, multiples of 5)

5 × ₹10.54

₹52.70

excl. GST

₹62.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP5907MFX-3.3(TOKMAS)

₹52.70 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 15uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 250mA
Features: Over Current Protection;Thermal shutdown;Enable control
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

Applications

Smartphones
Tablets
Communication equipment
Digital cameras
Factory automation

Key features

Ultra-low noise: 9 µVRMS, independent of VOUT
Ultra-low quiescent current: IGND = 15 µA at no load
Maximum output current: 250 mA
Input voltage range: 3.7 V to 5.5 V
Output voltage: 3.3 V
Output voltage accuracy: ±1%
Low shutdown current: < 1 µA
Low dropout: 140 mV
PSRR: 62 dB at 1 kHz
No additional noise bypass capacitor required
Stable with 1 μF ceramic input and output capacitors
Current limiting and thermal overload protection
Logic-controlled enable
5-pin SOT-23 package
