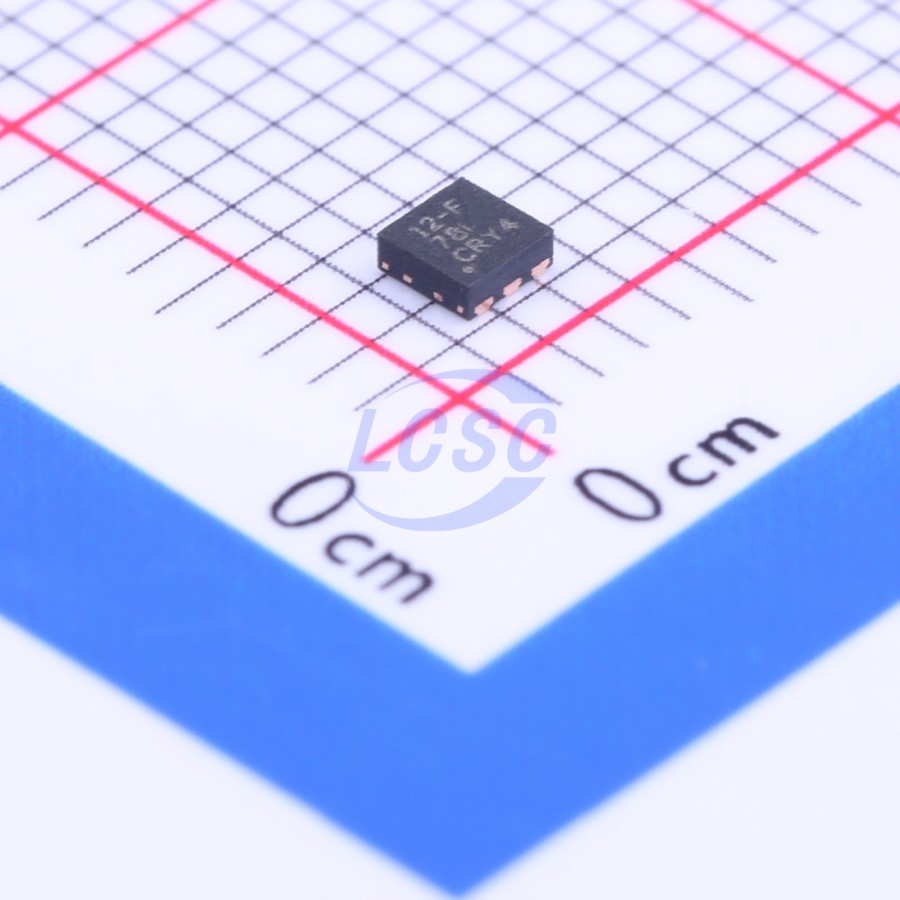

LP5912-3.3DRVT

The LP5912 is a low-noise LDO capable of providing up to 500mA output current. Designed to meet the requirements of RF and analog circuits, the LP5912 features low noise, high PSRR, low quiescent current, and low line/load transient response. The LP5912 delivers excellent noise performance without a noise bypass capacitor and supports remote placement of the output capacitor. This device is compatible with 1μF input and 1μF output ceramic capacitors (no separate noise bypass capacitor required). Fixed output voltage ranges from 0.8V to 5.5V in 25mV increments.

Applications

• Camera modules
• Sensors
• HiFi audio radio transceivers
• PLL/synthesizer, timing medium-current, noise-sensitive applications

Key features

• Input voltage range: 1.6V to 6.5V
• Output voltage range: 0.8V to 5.5V
• Output current up to 500mA
• Low output voltage noise: 12μVRMS typical
• PSRR at 1kHz: 75dB (typical)
• Output voltage accuracy (V OUT ≥3.3V): ±2%
• Low IQ (enabled, no load): 30μA (typical)
• Low dropout (V OUT ≥3.3V): 95mV typical at 500mA load
• Stable performance with 1μF ceramic input and output capacitors
• Thermal overload and short-circuit protection
• Reverse current protection
• No noise bypass capacitor required
• Auto output discharge for fast turn-off
• Power-good output with 140μs typical delay
• Internal soft-start limits inrush current
• Operating junction temperature range: -40°C to +125°C
