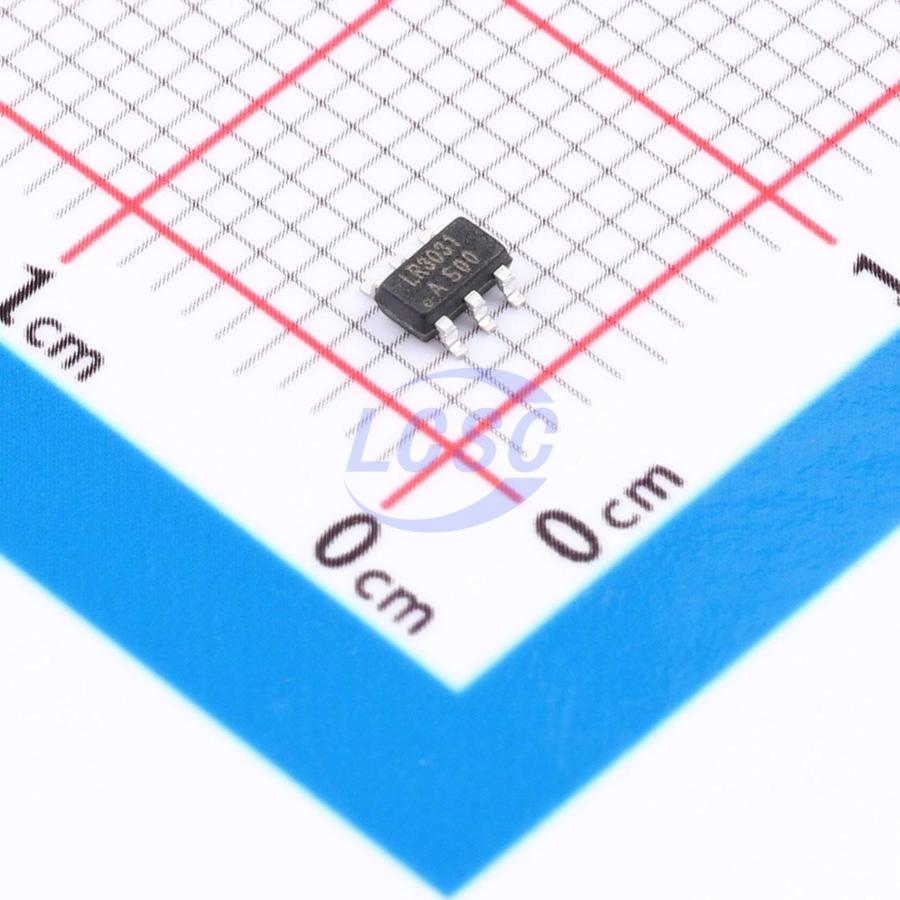

LR3031A-T
No 1 SOT-23-6 Sensor, Capacitive Touch RoHS
- Manufacturer
- LR
- Manufacturer part #
- LR3031A-T
- Store part #
- C54333734
- Package / case
- SOT-23-6
- Category
- Sensor, Capacitive Touch
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,080 in stock
#C54333734
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.01 | ₹100.20 |
| 200+ | ₹3.98 | ₹796.00 |
| 600+ | ₹3.47 | ₹2,082.00 |
| 3,000+ | ₹3.08 | ₹9,240.00 |
| 9,000+ | ₹2.78 | ₹25,020.00 |
| 21,000+ | ₹2.62 | ₹55,020.00 |
20 × ₹5.01
₹100.20
excl. GST
₹118.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR3031A-T
₹100.20 for 20 + GST
Specifications
- ESD Protection Voltage
- 5kV
- Features
- Capacitive Touch;Waterproof anti-interference touch
- Operating Temperature
- -40℃~+85℃
- Whether the Lock
- No
- Number of Channels
- 1
- Voltage - Supply
- 2.4V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.043 g
Overview
The LR303X series is a low-power, high-EMC-immunity capacitive touch sensor ASIC lineup, comprising two variants: LR3031A (single-channel) and LR3032A (dual-channel). This series can withstand interference from transmitting devices such as 8-watt walkie-talkie antennas in close proximity to the touch point. Featuring proprietary core technology, high-performance anti-interference circuitry, and high-speed self-capacitance sensing, the series delivers ultra-high sensing sensitivity combined with ultra-low standby power consumption, while simplifying system design complexity and improving operational stability. Operating temperature range: -40°C ~ 85°C. Widely used in consumer electronics and industrial control applications.
Applications
- Industrial control panels
- Medical control panels
- Digital whiteboards
- Bluetooth headsets
- Electronic toys
- Traditional button replacement
- Personal care products
- Smart door locks, air conditioners, washing machines, microwave ovens, and other home appliances
Key features
- Operating voltage range: 2.4V ~ 5.5V
- Standby current: 1.4μA @ VDD = 3.0V
- Sensitivity adjustment via external capacitor (CSE)
- Built-in common-mode interference rejection circuit
- Excellent EMI immunity
- HBM: >5KV MM>450V
- SOT23-6 package
