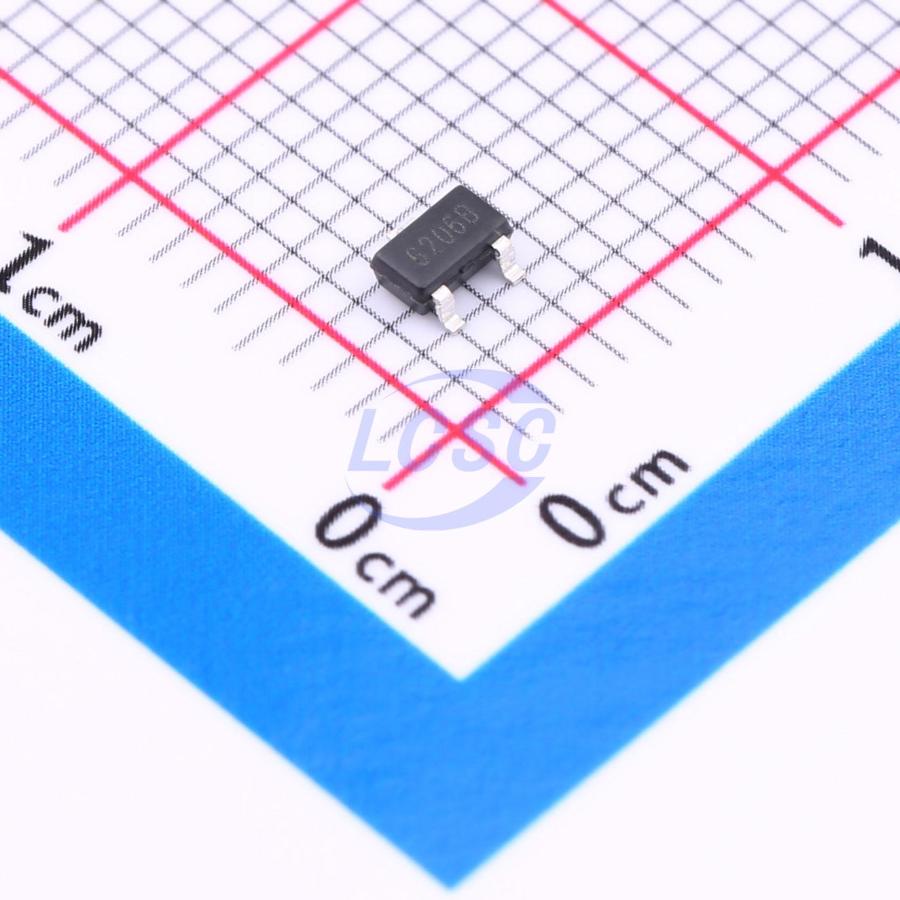

LR6206A-T15
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Low-power linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR6206A-T15
- Store part #
- C5179958
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,110 in stock
#C5179958
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.62 | ₹462.00 |
| 300+ | ₹4.01 | ₹1,203.00 |
| 3,000+ | ₹3.55 | ₹10,650.00 |
| 6,000+ | ₹3.19 | ₹19,140.00 |
| 9,000+ | ₹3.00 | ₹27,000.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR6206A-T15
₹58.50 for 10 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The LR6206A series is a low-power linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages ranging from 1.2V to 5.0V. An integrated short-circuit protection circuit ensures safe operation and extended service life.
Applications
- Basic application circuit
- Extended output voltage application circuit
- Extended output voltage application circuit 2
- High output current positive voltage regulator application circuit
- Constant current source output application circuit
- Dual-channel output application circuit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR8103A-T15#C5205201LR · SOT-23-3L | LR | SOT-23-3L | 3,040 | ₹6.27 · 3,040 in stock | View |
