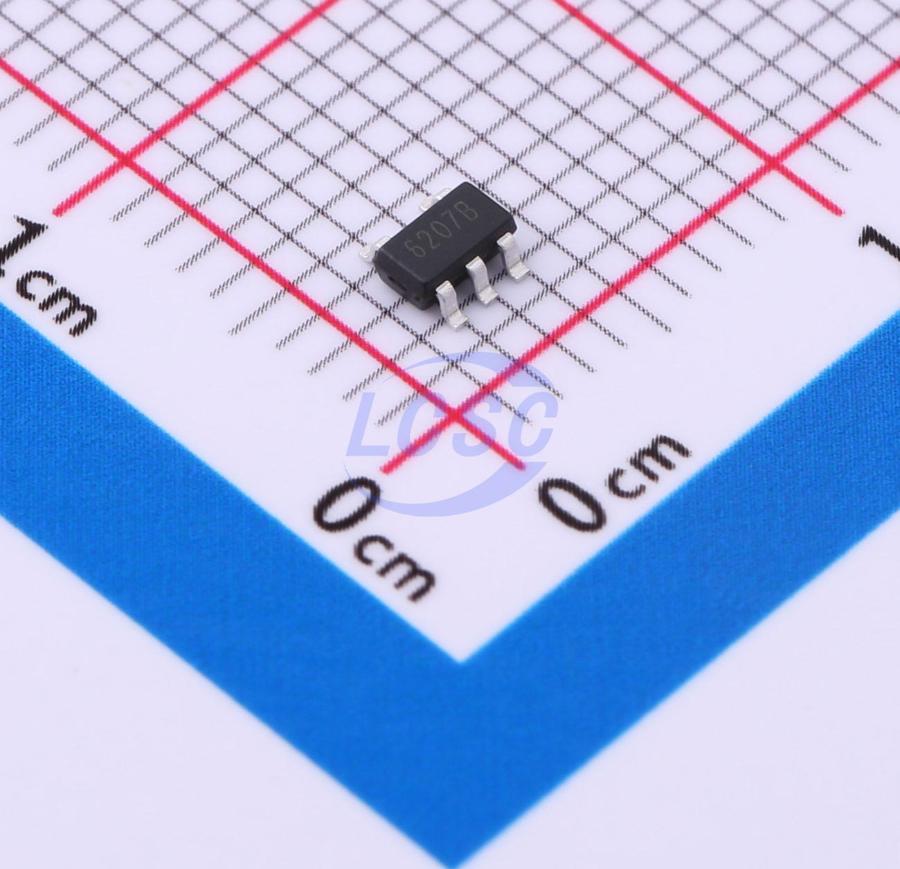

LR6207A-T15
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantDiscontinued
Low-power linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR6207A-T15
- Store part #
- C5260331
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,030 in stock
#C5260331
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.45 | ₹74.50 |
| 100+ | ₹5.94 | ₹594.00 |
| 300+ | ₹5.19 | ₹1,557.00 |
| 3,000+ | ₹4.41 | ₹13,230.00 |
| 6,000+ | ₹3.96 | ₹23,760.00 |
| 9,000+ | ₹3.72 | ₹33,480.00 |
10 × ₹7.45
₹74.50
excl. GST
₹87.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR6207A-T15
₹74.50 for 10 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.049 g
Overview
The LR6206A series is a low-power linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages in the range of 1.2V to 5.0V. An integrated short-circuit protection circuit ensures safe operation and extended service life.
Applications
- Basic application circuit
- Extended output voltage application circuit
- Extended output voltage application circuit 2
- High output current positive voltage regulator application circuit
- Constant current source output application circuit
- Dual-channel output application circuit
