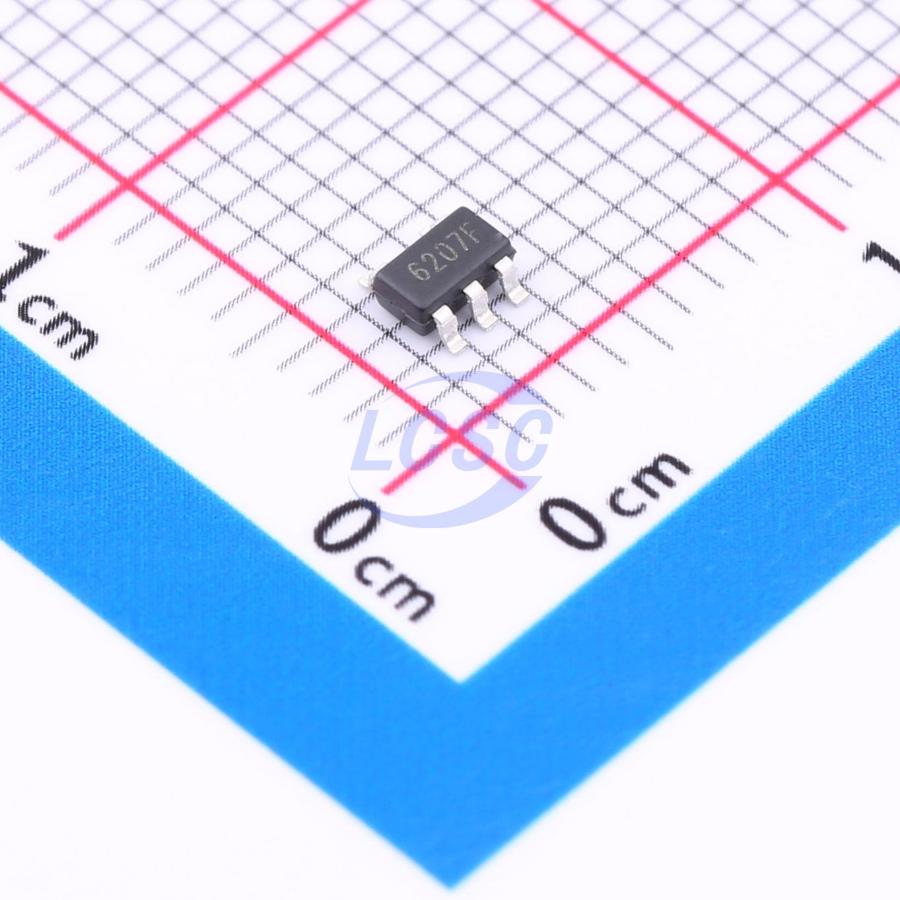

LR6207A-T30
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
Low-power linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR6207A-T30
- Store part #
- C5179963
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C5179963
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.66 | ₹93.20 |
| 200+ | ₹3.65 | ₹730.00 |
| 600+ | ₹3.08 | ₹1,848.00 |
| 3,000+ | ₹2.74 | ₹8,220.00 |
| 9,000+ | ₹2.45 | ₹22,050.00 |
| 21,000+ | ₹2.29 | ₹48,090.00 |
20 × ₹4.66
₹93.20
excl. GST
₹109.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR6207A-T30
₹93.20 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
The LR6206A series is a low-power linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages ranging from 1.2V to 5.0V. An integrated short-circuit protection circuit ensures safe operation and extended service life.
Applications
- Basic application circuit
- Extended output voltage application circuit
- Extended output voltage application circuit 2
- High output current positive voltage regulator application circuit
- Constant current source output application circuit
- Dual-channel output application circuit
