LRCDatasheet (PDF)

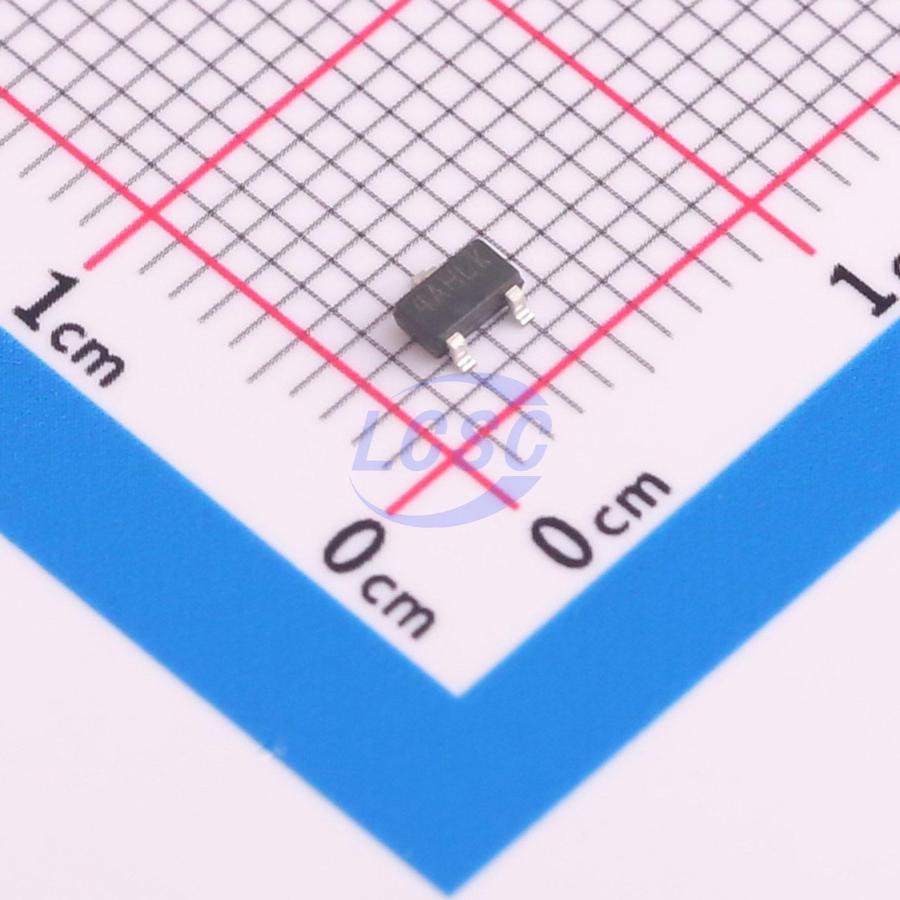

LR6232A25M
2.5V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
Ultra Low Current Consumption 300mA CMOS Voltage Regulator
- Manufacturer
- LRC
- Manufacturer part #
- LR6232A25M
- Store part #
- C2912054
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C2912054
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.71 | ₹87.10 |
| 100+ | ₹6.92 | ₹692.00 |
| 300+ | ₹6.02 | ₹1,806.00 |
| 3,000+ | ₹5.36 | ₹16,080.00 |
| 6,000+ | ₹4.82 | ₹28,920.00 |
| 9,000+ | ₹4.55 | ₹40,950.00 |
10 × ₹8.71
₹87.10
excl. GST
₹102.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR6232A25M
₹87.10 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Output discharge;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
The LR6232 series are a group of positive voltage regulators manufactured by CMOS technologies with ultralow power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The LR6232 series can deliver 300mA output current and allow an input voltage as high as 8V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Portable consumer equipments
- Radio control systems
- Laptop, Palmtops and PDAs
- Wireless Communication Equipments
- Portable Audio Video Equipments
- Ultra Low Power Microcontroller
Key features
- Low Quiescent Current: 0.8μA
- Operating Voltage Range: 1.8V~8V
- Output Current: 300mA
- Low Dropout Voltage: 110mV@100mA(VOUT = 3.3V)
- Output Voltage: 1.0~5.0V
- High Accuracy: ±2%/±1% (Typ.)
- High Power Supply Rejection Ratio: 50dB@1kHz
- Low Output Noise: 27xVout μVrms (10Hz~100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
