LRCDatasheet (PDF)

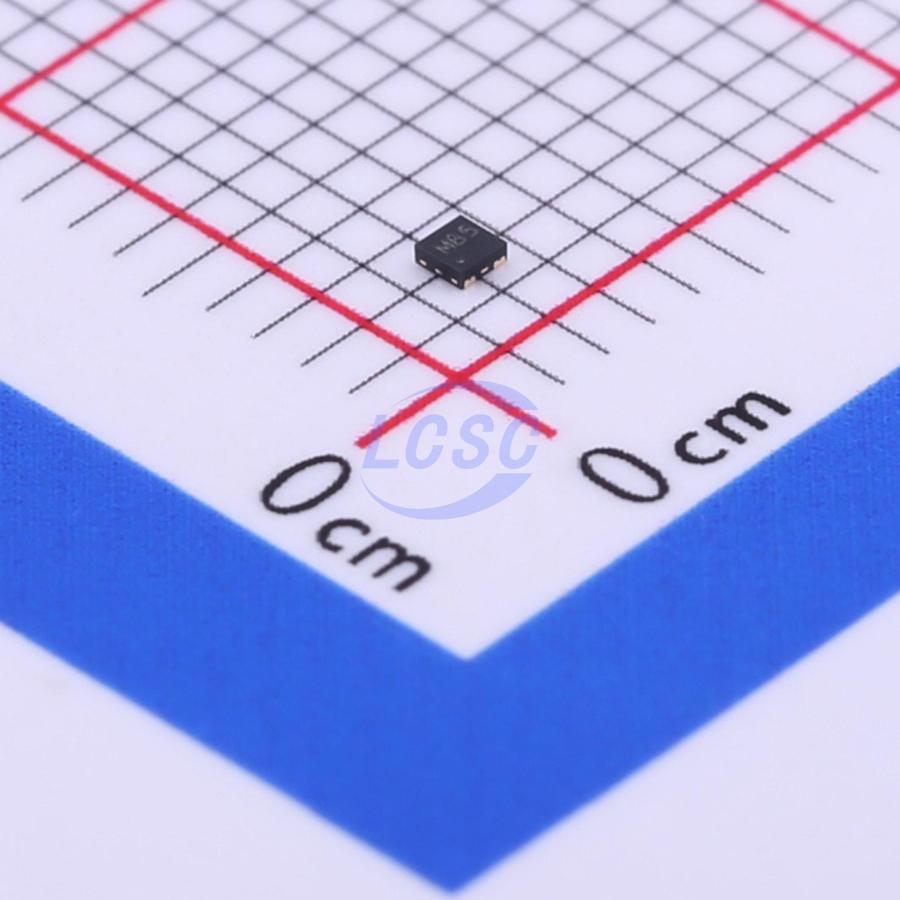

LR6232B30F1
3V Positive XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
XDFN-4-EP(1x1)RoHSActive
Ultra Low Current Consumption 300mA Linear Regulator
- Manufacturer
- LRC
- Manufacturer part #
- LR6232B30F1
- Store part #
- C417539
- Package / case
- XDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,350 in stock
#C417539
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.11 | ₹80.55 |
| 50+ | ₹12.99 | ₹649.50 |
| 150+ | ₹11.43 | ₹1,714.50 |
| 500+ | ₹10.25 | ₹5,125.00 |
| 2,500+ | ₹8.55 | ₹21,375.00 |
| 5,000+ | ₹8.07 | ₹40,350.00 |
5 × ₹16.11
₹80.55
excl. GST
₹95.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
LR6232B30F1
₹80.55 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
6232 series are a group of positive voltage regulators manufactured by CMOS technologies with ultra low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The 6232 series can deliver 300mA output current and allow an input voltage as high as 8V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Portable consumer equipments
- Radio control systems
- Laptop, Palmtops and PDAs
- Wireless Communication Equipments
- Portable Audio Video Equipments
- Ultra Low Power Microcontroller
Key features
- Low Quiescent Current: 0.8μA
- Operating Voltage Range: 1.8V~8V
- Output Current: 300mA Low Dropout Voltage 110mV@100mA(VOUT = 3.3V)
- Output Voltage: 1.0~5.0V
- High Accuracy: ±2%/±1% Typ.
- High Power Supply Rejection Ratio: 50dB@1kHz
- Low Output Noise: 27xVOUT VRMS (10Hz~100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
